G Series

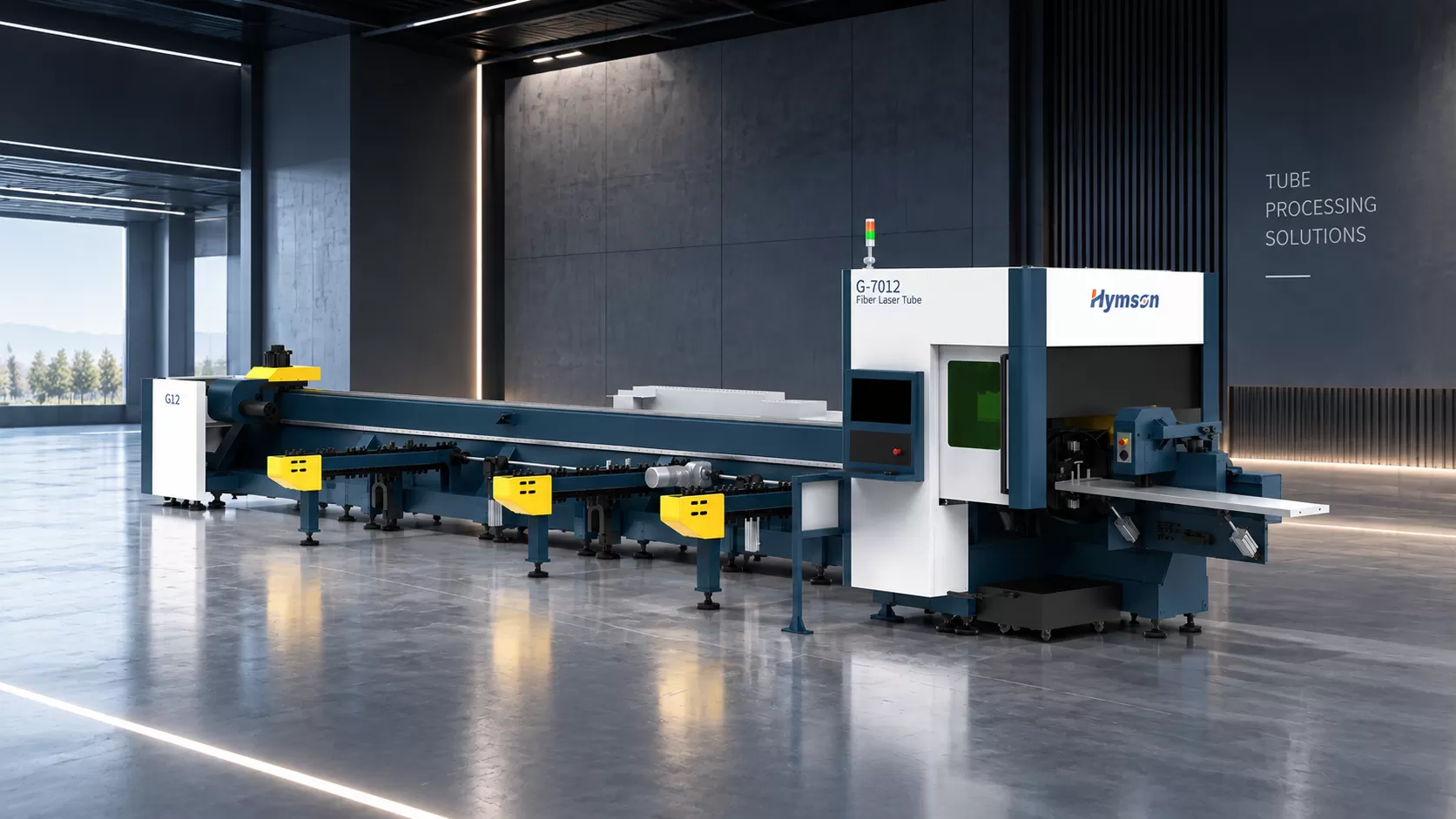

Home Tube Laser Cutting Machine G Series
G Series
Higher Output.
Greater Material Efficiency.

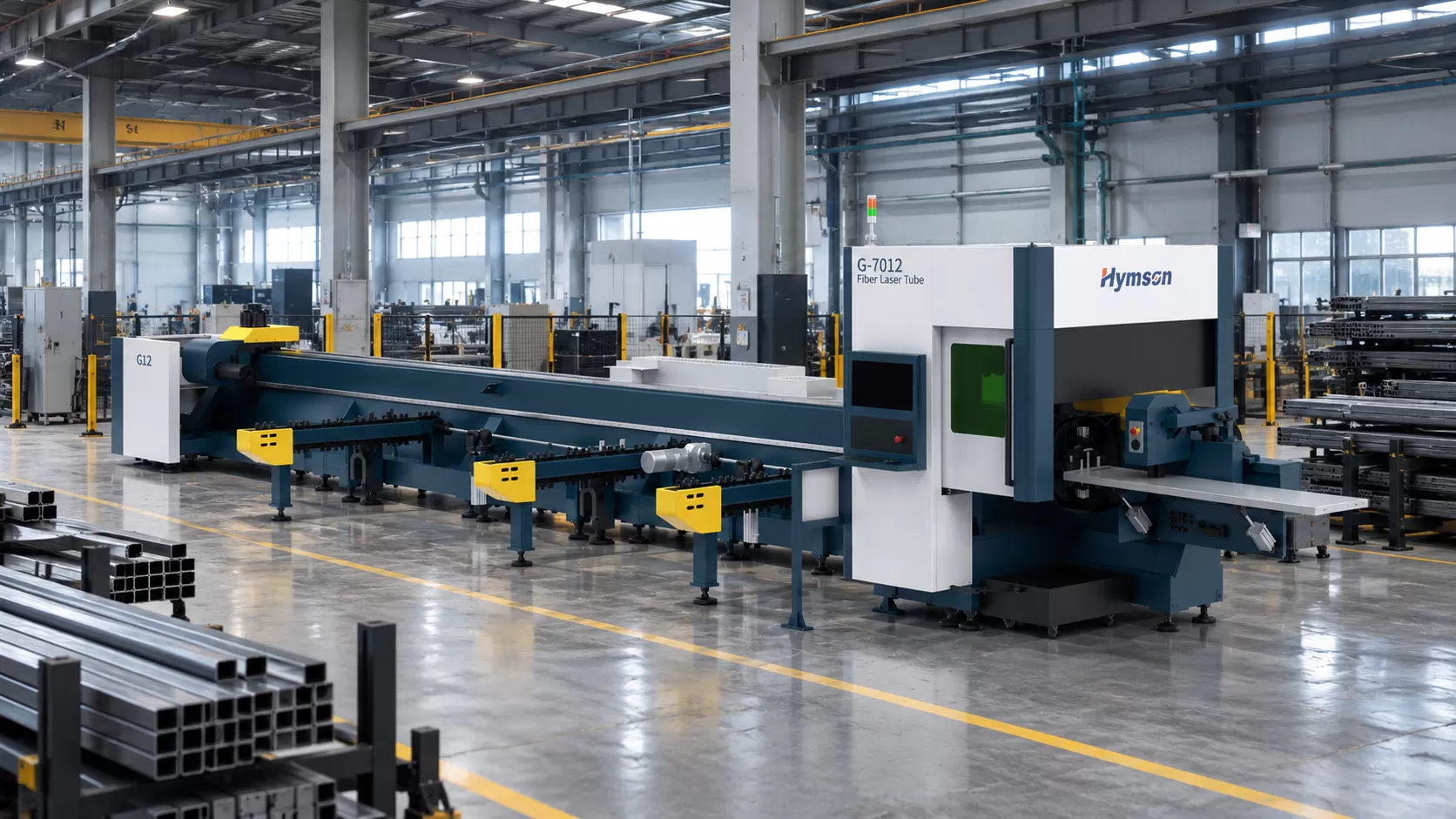

The G Series High-Speed Laser Tube Cutting Machine is designed for high-volume, precision processing of small- to medium-diameter tubes. It supports a wide range of tube profiles, including round, square, rectangular, and special-shaped tubes. With a balanced combination of speed, precision, cutting consistency, and material utilization, it is well suited for demanding batch tube processing applications.
Dual-Chuck
Configuration
3-6 kW
Laser Power
1.2 / 1.5 g
Acceleration
±0.03 mm/m
Positioning Accuracy
Up to 7,000 mm
Tube Processing Length
Faster Tube Processing

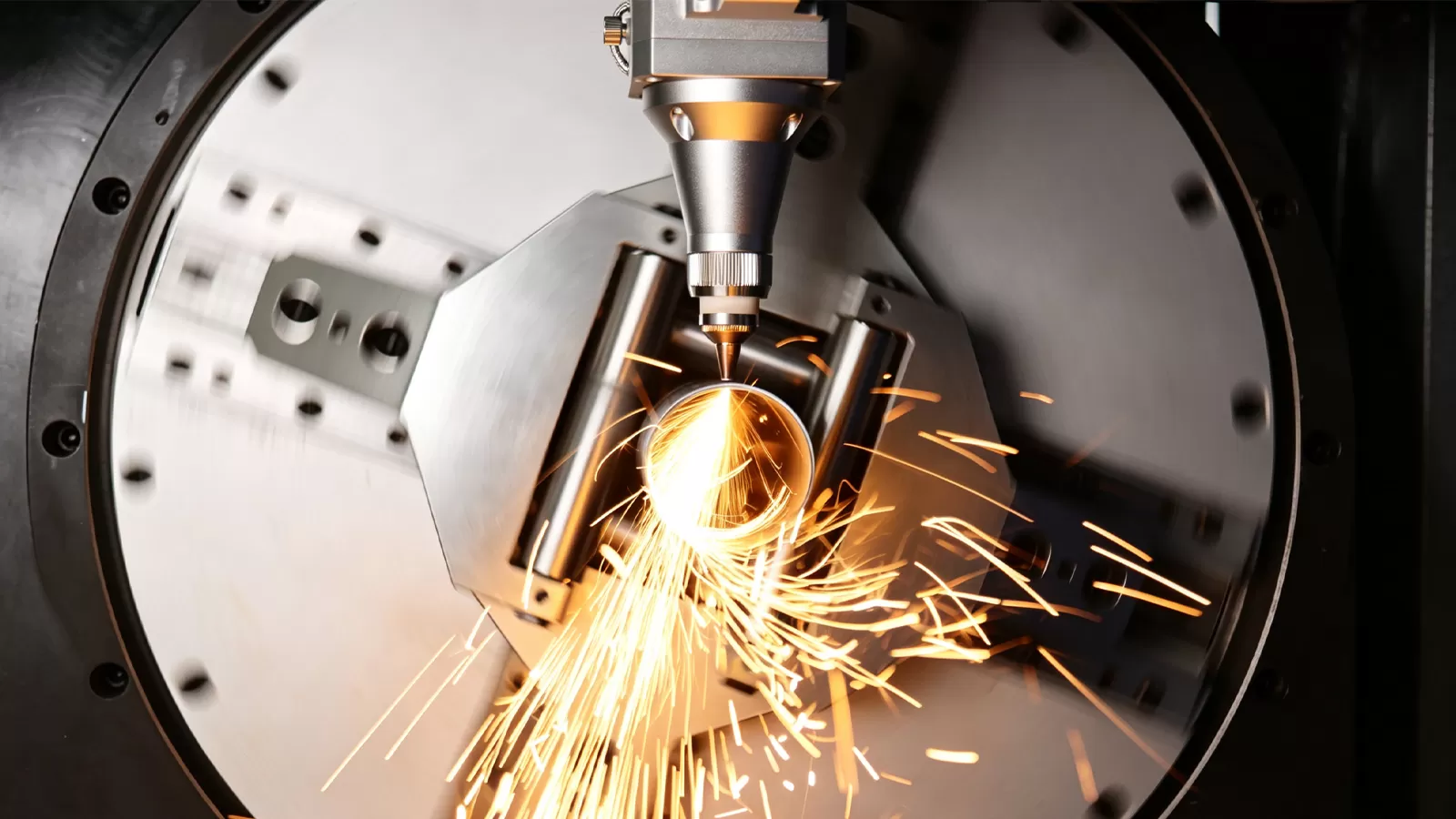

01. Faster Tube Processing
Shorter Cycle Times. Higher Throughput.
Designed for fast, responsive motion, the G Series minimizes unnecessary movement and processing delays, helping shorten cycle times and increase throughput for high-volume tube production.
Consistent Cutting Quality
02. Consistent Cutting Quality
Stable Tube Positioning Throughout the Process
Multiple active centering mechanisms continuously support and position the tube along the feeding direction, helping reduce movement caused by tube bending and high-speed rotation.
Long-Term Stability & Accuracy
03. Long-Term Stability & Accuracy
Rigid Structure for Stable Operation
The side-mounted modular bed lowers the machine’s center of gravity, while its reinforced internal structure enhances overall rigidity. This helps reduce vibration and structural deformation during high-speed operation, supporting stable performance and consistent accuracy over long production runs.
Higher Material Utilization
04. Higher Material Utilization
Short Remnants, Less Waste
Dual-chuck clamping enables ultra-short remnant cutting. Combined with the FSCUT bus control system and Tubest nesting software, the system optimizes tube layouts and cutting paths to improve material utilization and reduce material waste in batch production.
Flexible Production Options
05. Flexible Production Options
Multiple Loading & Unloading Configurations
Offers multiple loading and unloading options, including follow-up unloading, tube loading and fully automated loading. Configurations can be selected according to production volume and automation requirements, supporting different levels of production automation.

Use Cases

01.
Metal Furniture & Office Furniture
Tables, chairs, shelving, storage cabinets, and other tubular components for metal furniture.
02.
Bicycles & E-Bikes
Frames, handlebars, supports, and other tubular structural components.
03.
Fitness Equipment & Sporting Goods
Fitness equipment frames, sporting goods, and other tubular structural components.
04.
Hardware Products & Display Equipment
Shelving, display stands, brackets, and other tubular hardware components.
05.
Ventilation & Environmental Equipment
Ventilation systems, environmental equipment, and related tubular components.

Cutting capacity

Model 7012 7024
Round Tube Φ8–Φ120 mm Φ10–Φ240 mm
Angle Steel ≤10# ≤10#
Channel Steel ≤10# ≤20#
Square Tube □8–□120 mm □10–□240 mm
Rectangular Tube Side Length 5–120 mm Side Length 10–240 mm

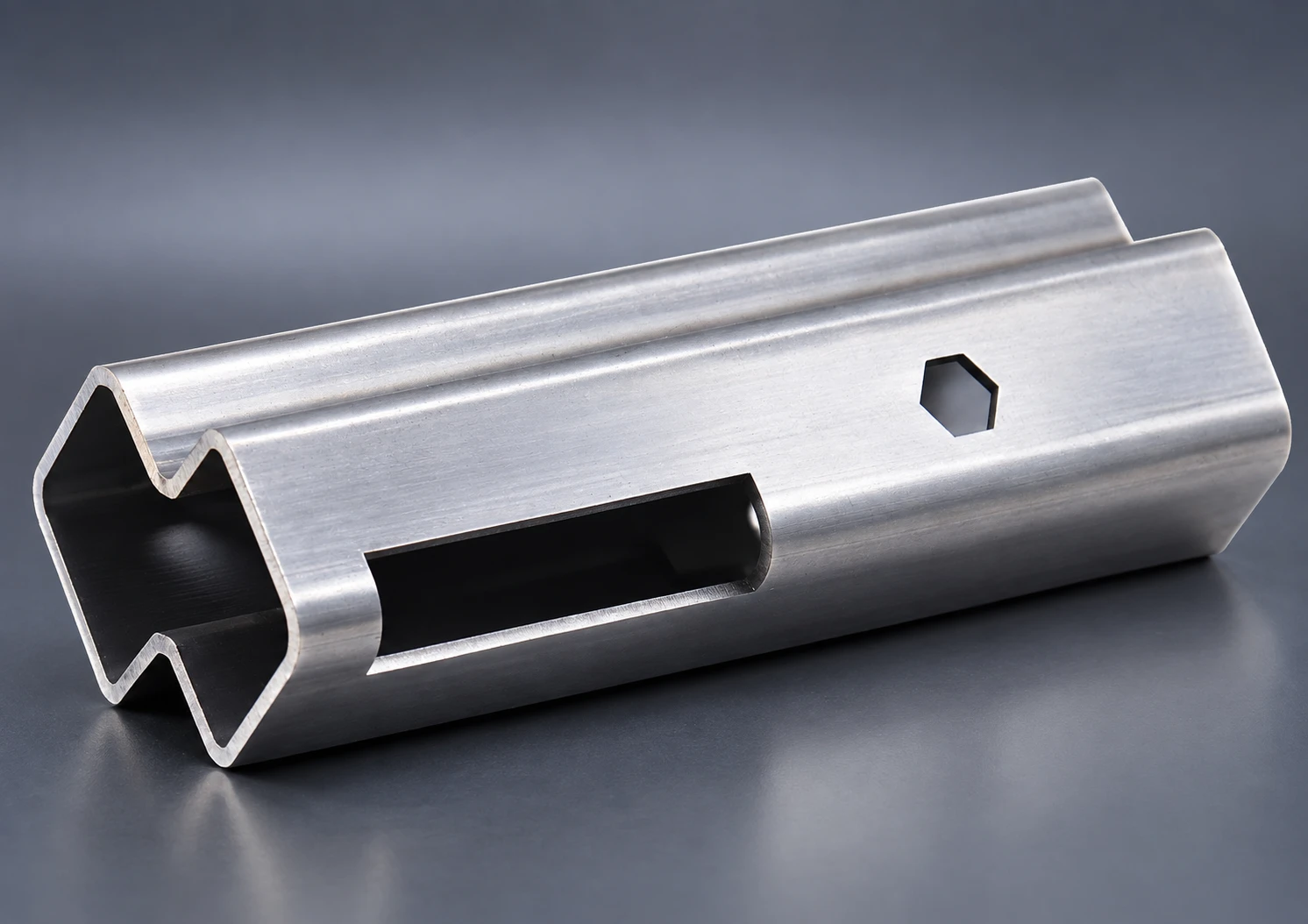

Workpiece

View More

Technical Specifications

Model 7012 7024
Max. Tube Weight 150 kg 300 kg
Max. Processable Tube Length 7000 mm 7000 mm
Max. Chuck Rotation Speed 180 r/min 120 r/min
Max. X-Y Axis Traversing Speed 75 m/min 75 m/min
Max. Stable X-Y Axis Acceleration 1.5 g 1.2 g
X-Y Axis Positioning Accuracy ±0.03 mm/m ±0.03 mm/m
Z-Axis Travel 250 mm 250 mm
Max. Z-Axis Speed 75 m/min 60 m/min
Requirements for tubes Tube Diameter < Φ50 mm, Wall Thickness ≥ 1 mm
Tube Diameter ≥ Φ50 mm, Wall Thickness ≥ 2.5% of Tube Diameter		 Tube Diameter < Φ50 mm, Wall Thickness ≥ 1 mm
Tube Diameter ≥ Φ50 mm, Wall Thickness ≥ 2.5% of Tube Diameter
Machine Overall Dimensions
(Physical Boundary)		 12500 * 3000 * 2500 mm 13000 * 3000 * 2500 mm
