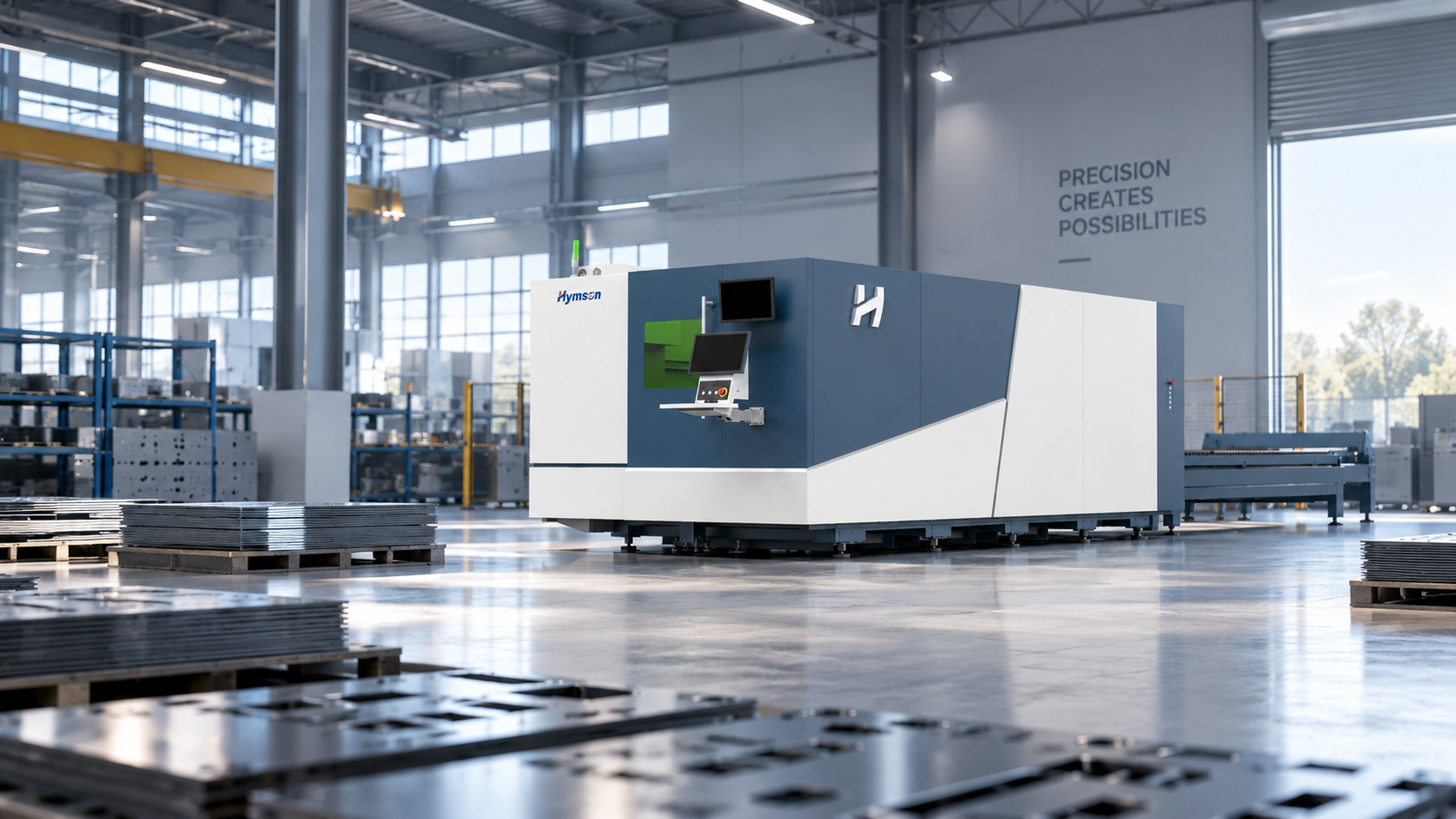

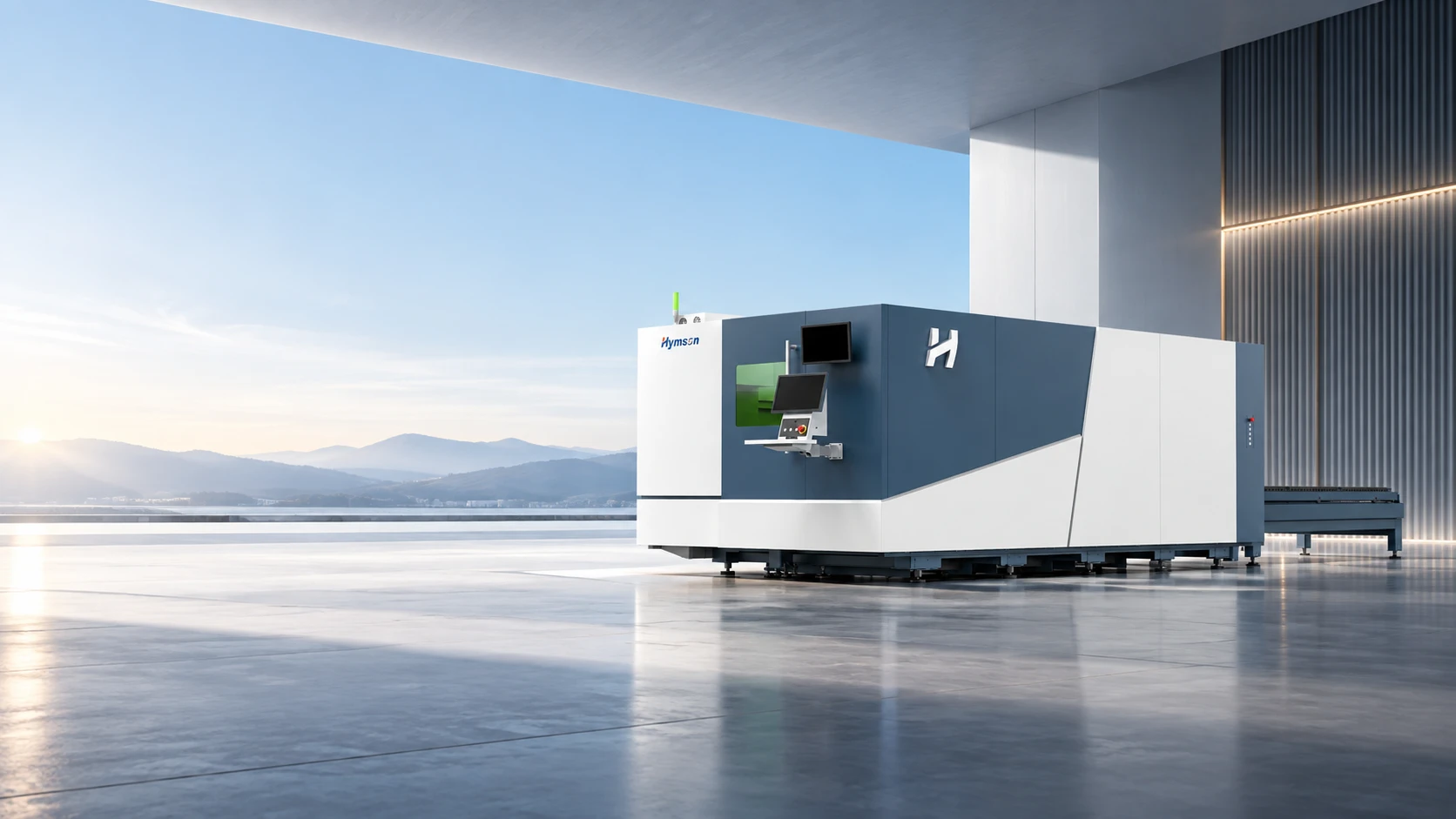

HF-G-9X

More Than High Speed

Designed for precision sheet metal processing, the HF-G-9X handles different part sizes, complex contours and varying batch requirements with high speed, stability and consistent quality. It also supports seamless integration with automated loading and unloading systems, storage systems and multi-machine production setups, enabling flexible expansion as production needs evolve.

2.0 g

Stable Acceleration

±0.03 mm/m

Positioning Accuracy

3–20 kW

Laser Power

3216 / 4020 / 6316 / 6320

Multiple Size

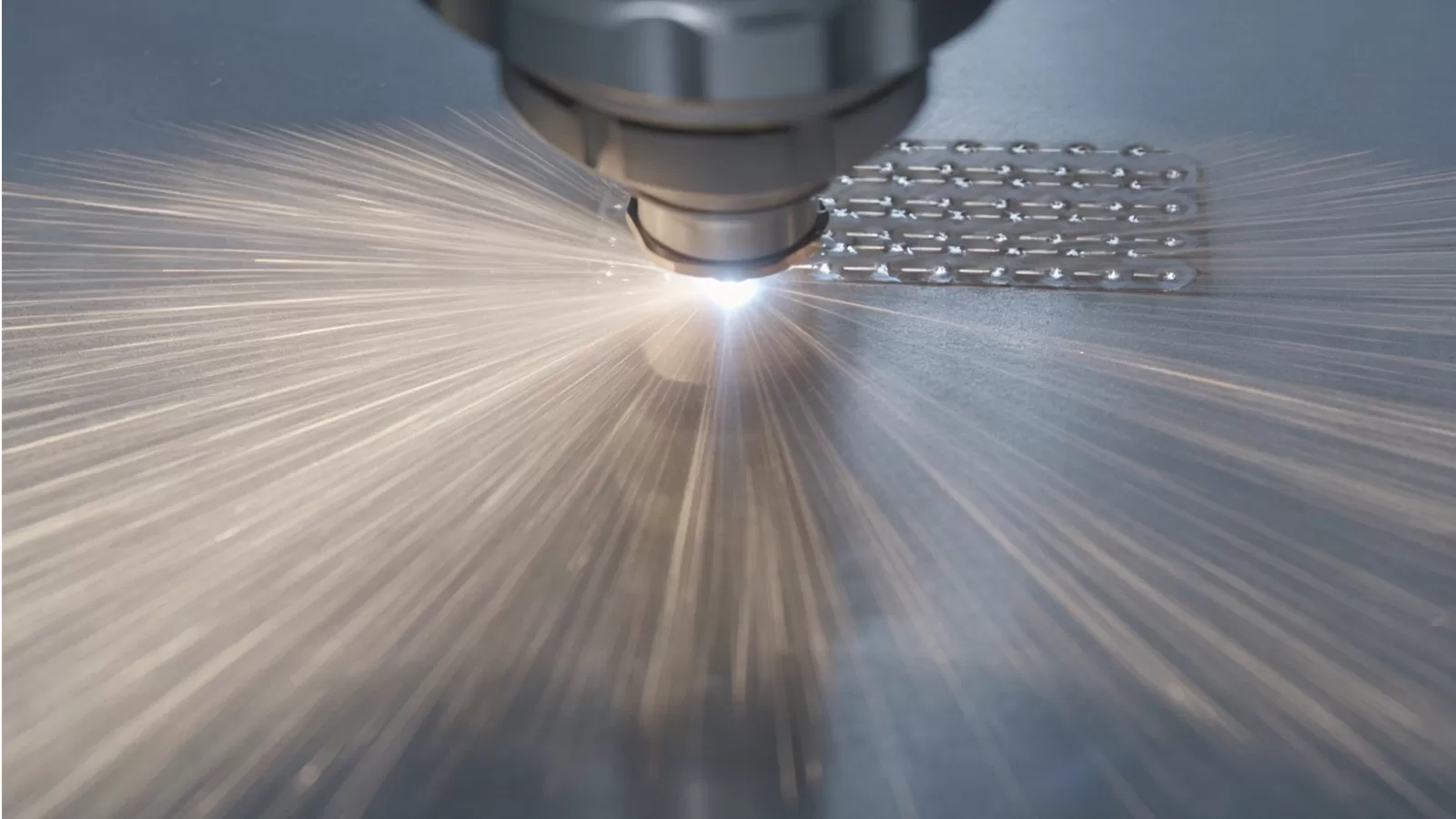

01. Stable Operation, Continuous Production

Built on proven machine architecture and integrated hardware and software, the HF-G-9X combines a rigid structure, stable motion system, reliable laser source, intelligent control and optimized cutting processes to support continuous, consistent production.

02. Intelligent Processing, Simplified Operation

Integrated intelligent processing functions optimize remnant utilization, nesting and unloading workflows, reducing manual intervention while improving production efficiency and processing consistency.

03. Scalable Automation, Flexible Production

Supports CCD vision, automated loading and unloading, and automated storage systems, allowing production capacity to scale from standalone operation to multi-machine and flexible production lines.

04. Connected Data, Smarter Management

Supports automatic marking and MES connectivity for part traceability, connecting equipment, production data and management processes to support smarter production management and digitalization.

Use Cases

01.

General Sheet Metal

Machine parts, sheet metal structures, metal enclosures, custom sheet metal parts

02.

Electrical Cabinets

Electrical cabinets, control cabinets, distribution cabinets, equipment enclosures

03.

Elevators

Elevator cabins, doors, panels, structural components

04.

Electrical Manufacturing

Electrical enclosures, mounting plates, control panels, structural components

05.

Customized Metal Fabrication

Custom parts, complex-shaped sheet metal parts, small-batch components, non-standard structures

Cutting capacity

Material	3 kW	6 kW	12 kW	20 kW
Carbon Steel	12 mm	25 mm	30 mm	40 mm
Stainless Steel	8 mm	12 mm	25 mm	40
Brass	6 mm	10 mm

Workpiece

Technical Specifications

Model	HF-G-9X-3216	HF-G-9X-4020	HF-G-9X-6316	HF-G-9X-6320
Max. Working Area	3200 * 1600 mm	4000 * 2000 mm	6300 * 1600 mm	6300 * 2000 mm
X&Y Axis Max. Linkage Speed	140 m/min	140 m/min	140 m/min	140 m/min
Max. Stable X-Y Axis Acceleration	2.0 g (FAT Condition)	2.0 g (FAT Condition)	2.0 g (FAT Condition)	2.0 g (FAT Condition)
X-Y Axis Positioning Accuracy	±0.03 mm/m	±0.03 mm/m	±0.03 mm/m	±0.03 mm/m
Z Axis Travel	250 mm	250 mm	250 mm	250 mm
Machine Overall Dimensions	9700 * 3000 * 2300 mm	11800 * 3350 * 2300 mm	16100 * 3000 * 2300 mm	16100 * 3400 * 2350 mm
