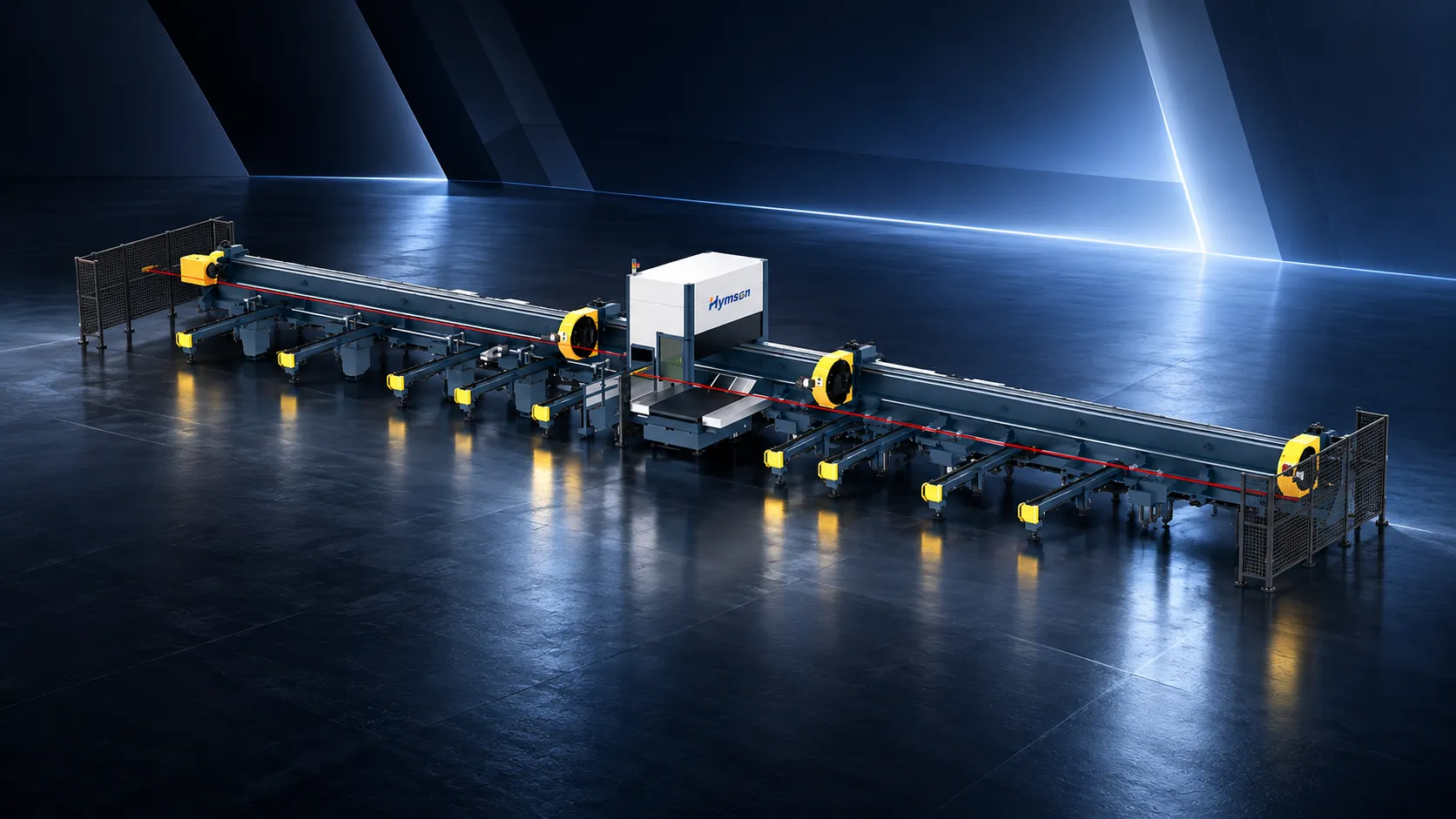

FP Laser Tube Cutting Machine
Maximize Large Tube Productivity

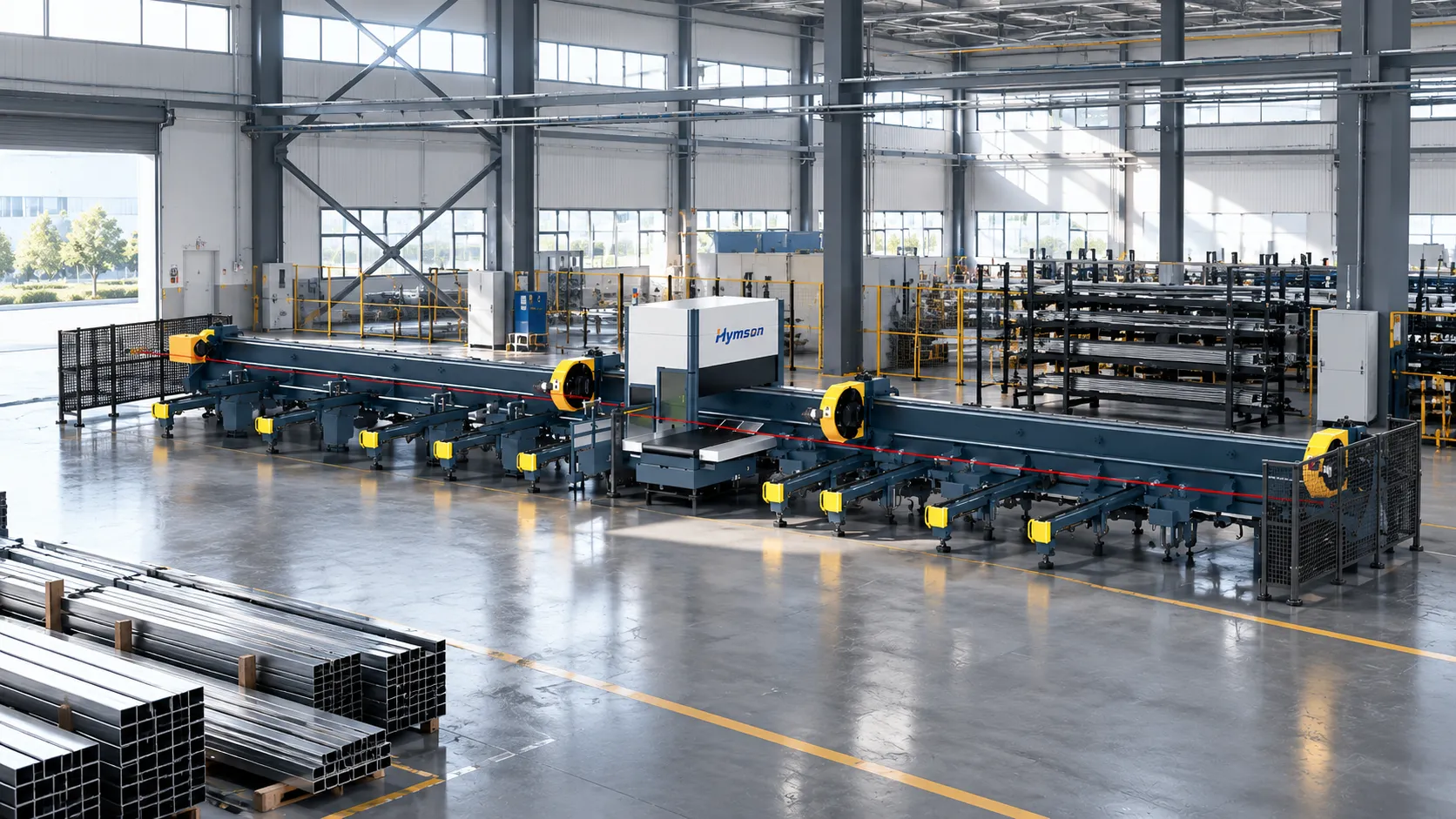

The FP Laser Tube Cutting Machine is designed for high-volume large-tube production. It combines reliable and safe processing of large tubes with continuous operation and high production efficiency, enabling higher machine utilization and output in demanding production environments.

Chucks

12 - 20 kW

Laser Power

±0.05 mm/m

Positioning Accuracy

12000 mm

Max. Tube Length

2000 kg

Max. Tube Load

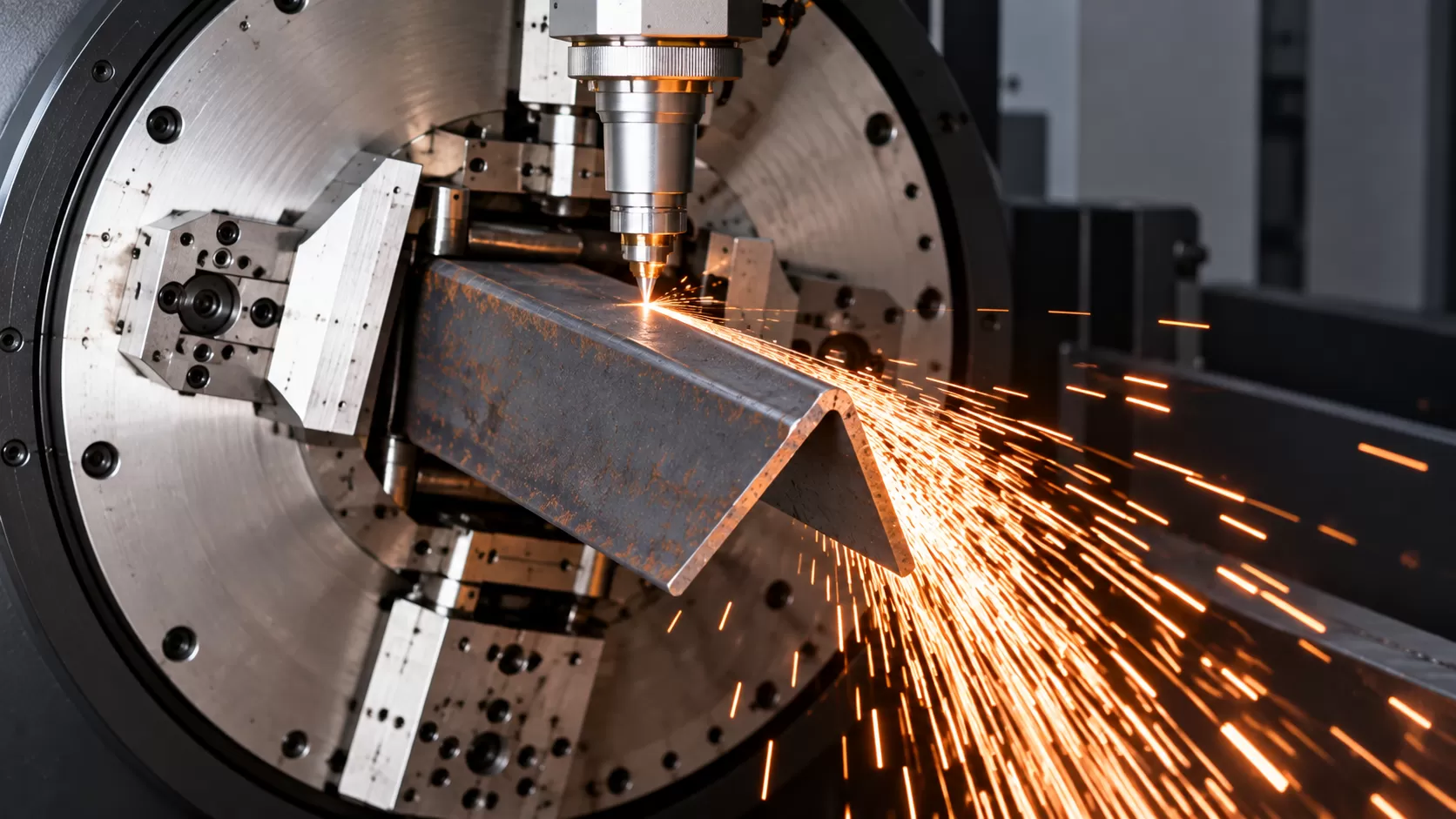

01. Continuous Production

Maximize Production Throughput

Four freely movable chucks work in coordination throughout the cutting process, flexibly adjusting their positions to maintain continuous support for long tubes.

02. Flexible Processing

Handle More Tube Sizes

Full-travel chucks accommodate a wide range of tube sizes without frequent jaw changes, reducing setup work and making production changeovers faster and more flexible.

03. Reliable & Safe Operation

Reduce Operating Risks

A rigid structure provides stable support, while multiple detection and protection functions support safe and reliable processing.

04. Material Efficiency

Reduce Material Waste

Coordinated chuck movement and optimized nesting make better use of tube length, reducing unusable remnants and improving material utilization.

05. Easy Handling

Simplify Heavy Tube Loading

Semi-automatic loading supports tubes up to 1,500 kg each, with buffering for two tubes. Less manual handling, smoother production.

Use Cases

01.

Structural Steel

Structural frames, columns, support structures and large structural components

02.

Construction & Heavy Equipment

Structural components, supports, booms and chassis components for construction and heavy equipment

03.

Shipbuilding & Marine

Hull structures, support structures and large tube components

04.

Oil & Gas

Pipelines, piping structures and related structural components

05.

Pressure Equipment

Pressure vessel components, large tubes and equipment support structures

Cutting capacity

Model	12036	12052
Round Tube	Φ40-Φ360 mm	Φ50-Φ520 mm
Square Tube	□40 - □360 mm	□50 - □520 mm
Rectangular Tube	Side Length 40–360 mm	Side Length 50–520 mm
Channel Steel	≤32#	14#–40#
Angle Steel	≤25#	5#–25#

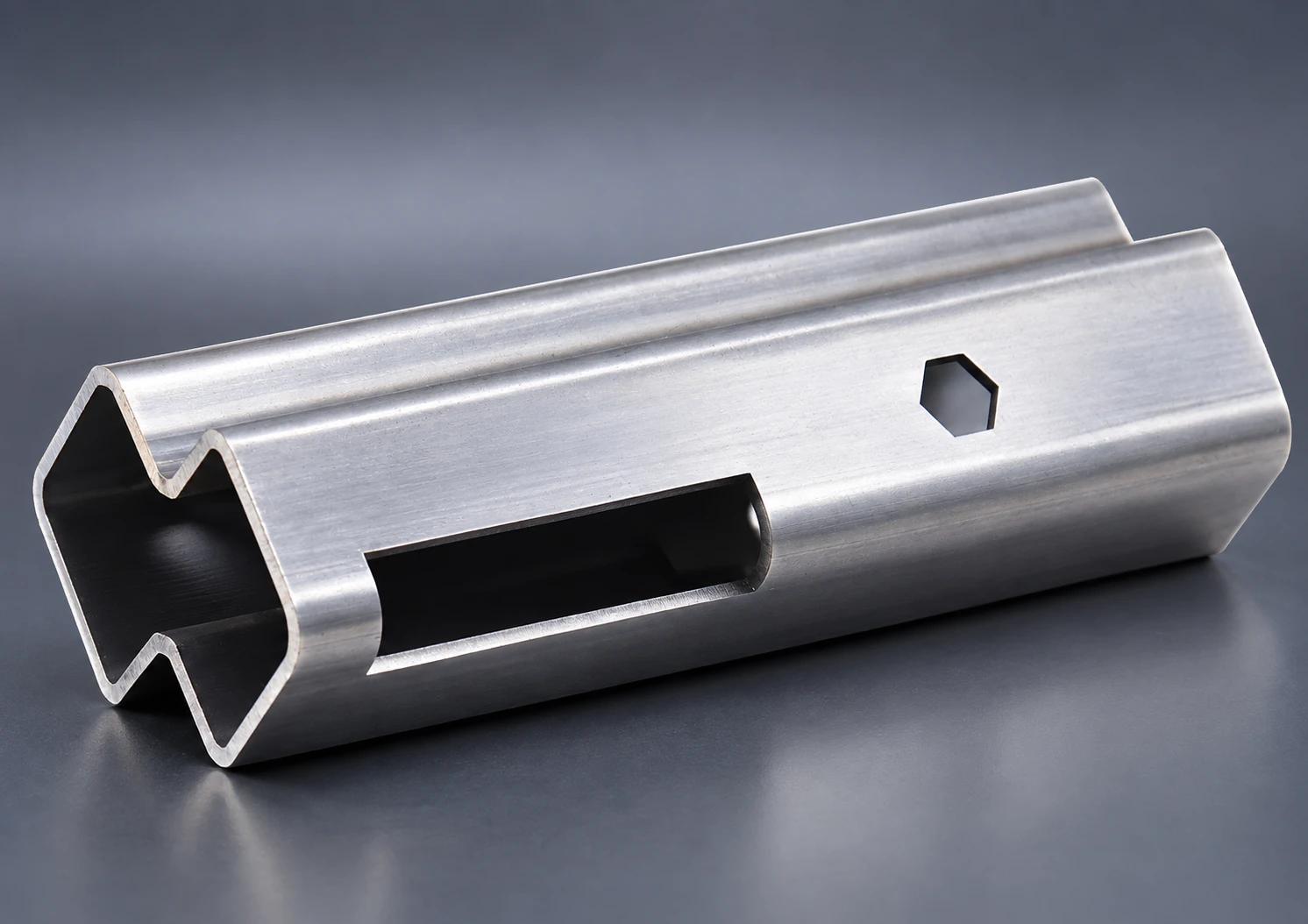

Workpiece

Technical Specifications

Model	12036	12052
Max. Tube Weight	1200 kg	2000 kg
Max. Processable Tube Length	12000 mm	12000 mm
Max. Chuck Rotation Speed	60 r/min	40 r/min
Max. X-Y Axis Traversing Speed	60 m/min	60 m/min
Max. Stable X-Y Axis Acceleration	0.8 g	0.5 g
X-Y Axis Positioning Accuracy	±0.05 mm/m	±0.05 mm/m
Z-Axis Travel	575 mm	575 mm
Max. Z-Axis Speed	60 m/min	60 m/min
Requirements for tubes	Tube Diameter ≥ Φ50 mm, Wall Thickness ≥ 2.5% of Tube Diameter	Tube Diameter ≥ Φ50 mm, Wall Thickness ≥ 2.5% of Tube Diameter
Machine Overall Dimensions (Physical Boundary)	12000mm blanking: 29000 * 5000 * 3000mm	12000mm blanking: 29000 * 5000 * 3000mm
