HF-AG
Home 2D Laser Cutting Machine HF-AG

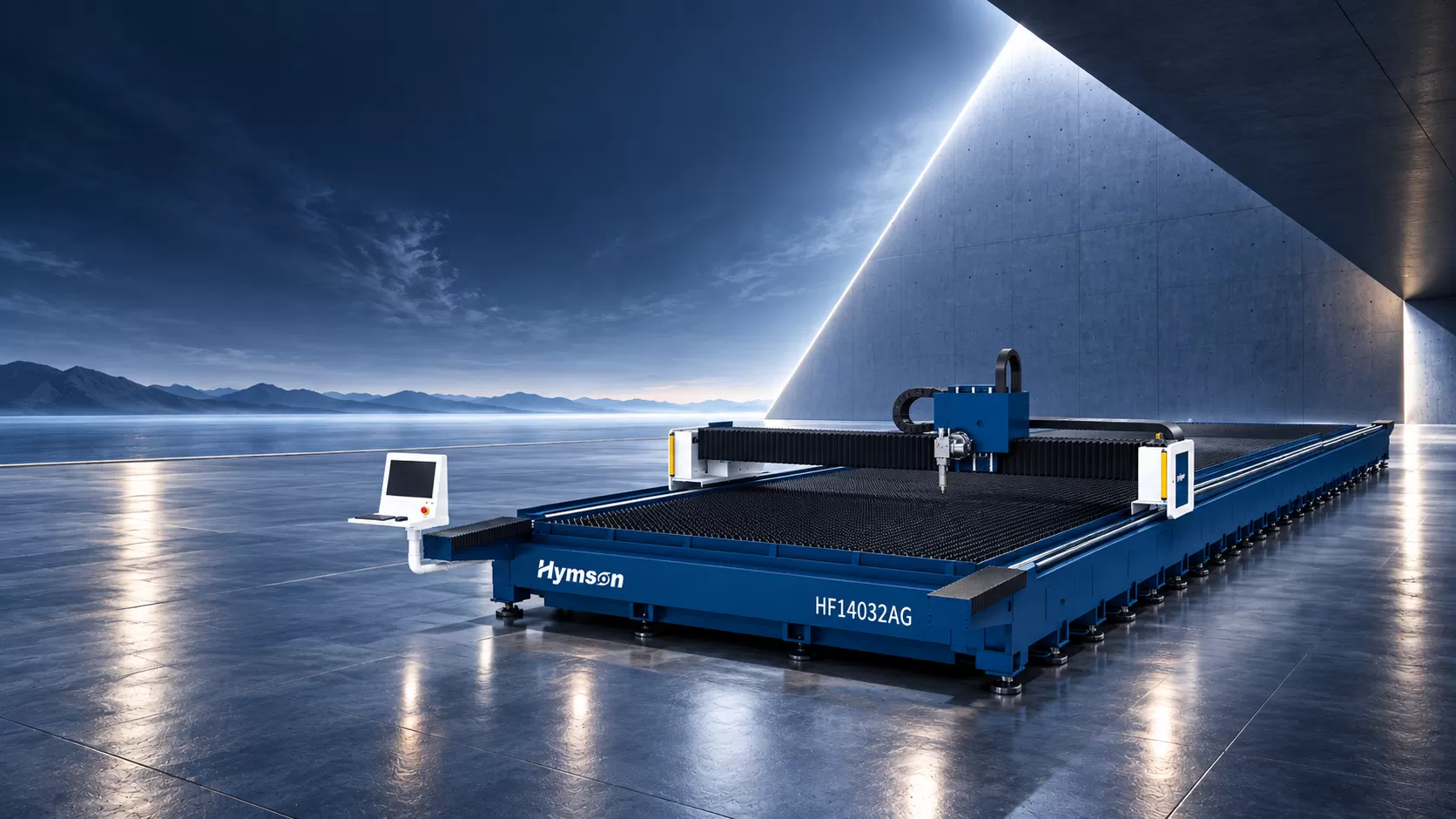

HF-AG
Higher Output.
Better Cost Control.
Designed for long, large, thick and heavy plates, HF-AG combines a large working area, high-dynamic motion and high-power laser processing to improve overall cutting efficiency, increase equipment utilization and optimize production costs.
Up to 1.5 g
Stable Acceleration
±0.03 mm/m
Positioning Accuracy
12-60 KW
Laser Power
13026/14032
Multiple Size

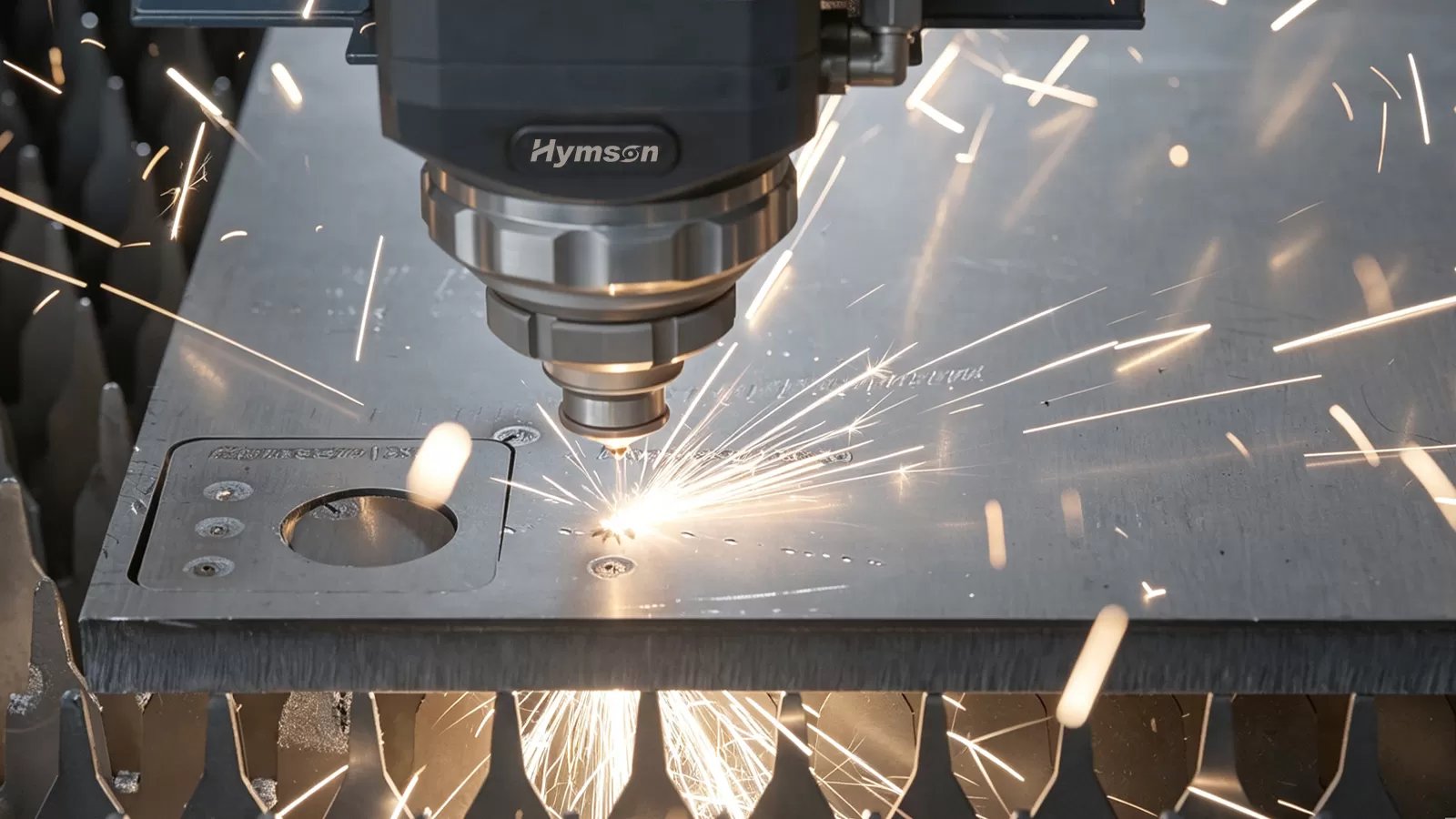

Higher Overall Productivity
01. Higher Overall Productivity
High-dynamic motion, high-speed long-distance movement, fast corner response and efficient piercing work together to shorten overall plate processing time.
Better Cost Control
02. Better Cost Control
Higher material utilization and broader application coverage help optimize production costs.

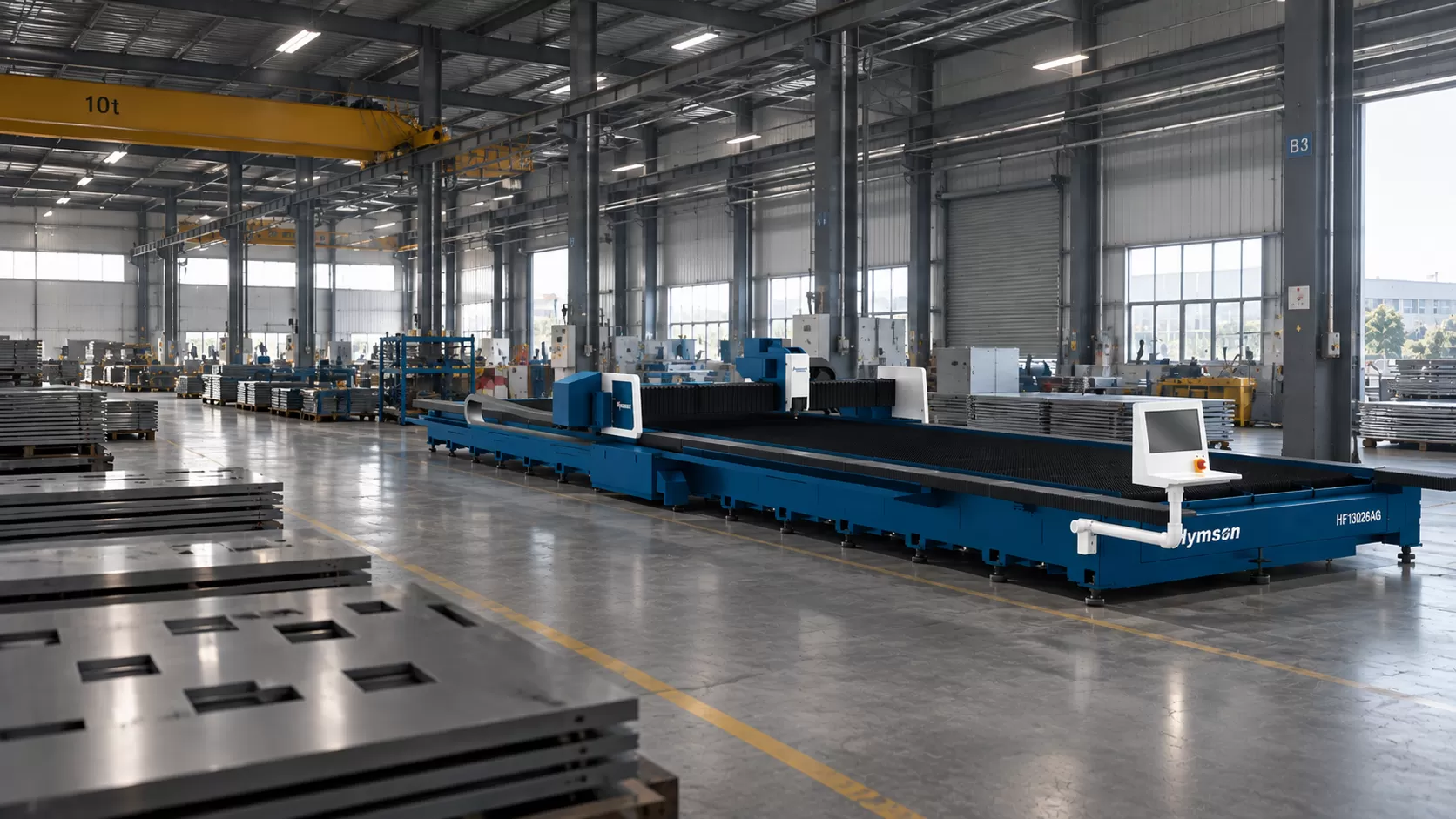

Stable Heavy-Duty Processing
03. Stable Heavy-Duty Processing
An integrated interlocking bed structure and stable high-power laser output, combined with stable motion and precise positioning, support reliable large-format heavy-duty processing of long, large, thick and heavy plates.
Flexible Production
04. Flexible Production
From heavy-duty thick plates to everyday sheet metal, HF-AG handles diverse production needs with one machine.

Use Cases

01.
Heavy Equipment
Laser cutting of thick plates and large structural components.
02.
Steel Structures & Construction
Laser cutting of large plates and heavy steel components.
03.
Shipbuilding
Laser cutting of large and thick plates for shipbuilding.
04.
Large-Scale Sheet Metal Fabrication
Laser cutting of large-format sheet metal and structural parts.

Cutting capacity

Power 12 kW 20 kW 30 kW 40 kW 60 kW
Carbon Steel 30 mm 40 mm 60 mm 70 mm 100 mm
Stainless Steel 25 mm 40 mm 50 mm 60 mm 80 mm

Workpiece

View More

Technical Specifications

Model HF-AG-13026（7x/6x） HF-AG-14032（7x/6x）
Max. Working Area 13000 * 2600 mm 14000 * 3200 mm
X&Y Axis Max. Linkage Speed 140 m/min 140 m/min
Max. Stable X-Y Axis Acceleration 1.5 g 1.5 g
X-Y Axis Positioning Accuracy ±0.03 mm/m ±0.03 mm/m
Z Axis Travel 150 mm 150 mm
Machine Overall Dimensions
(Physical Boundary)		 16500 * 4000 * 1800 mm 17600 * 4500 * 1800 mm
