HyAuto

HyAuto

Keep Production Moving
Home Automation HyAuto

Maximize Laser Cutting Productivity

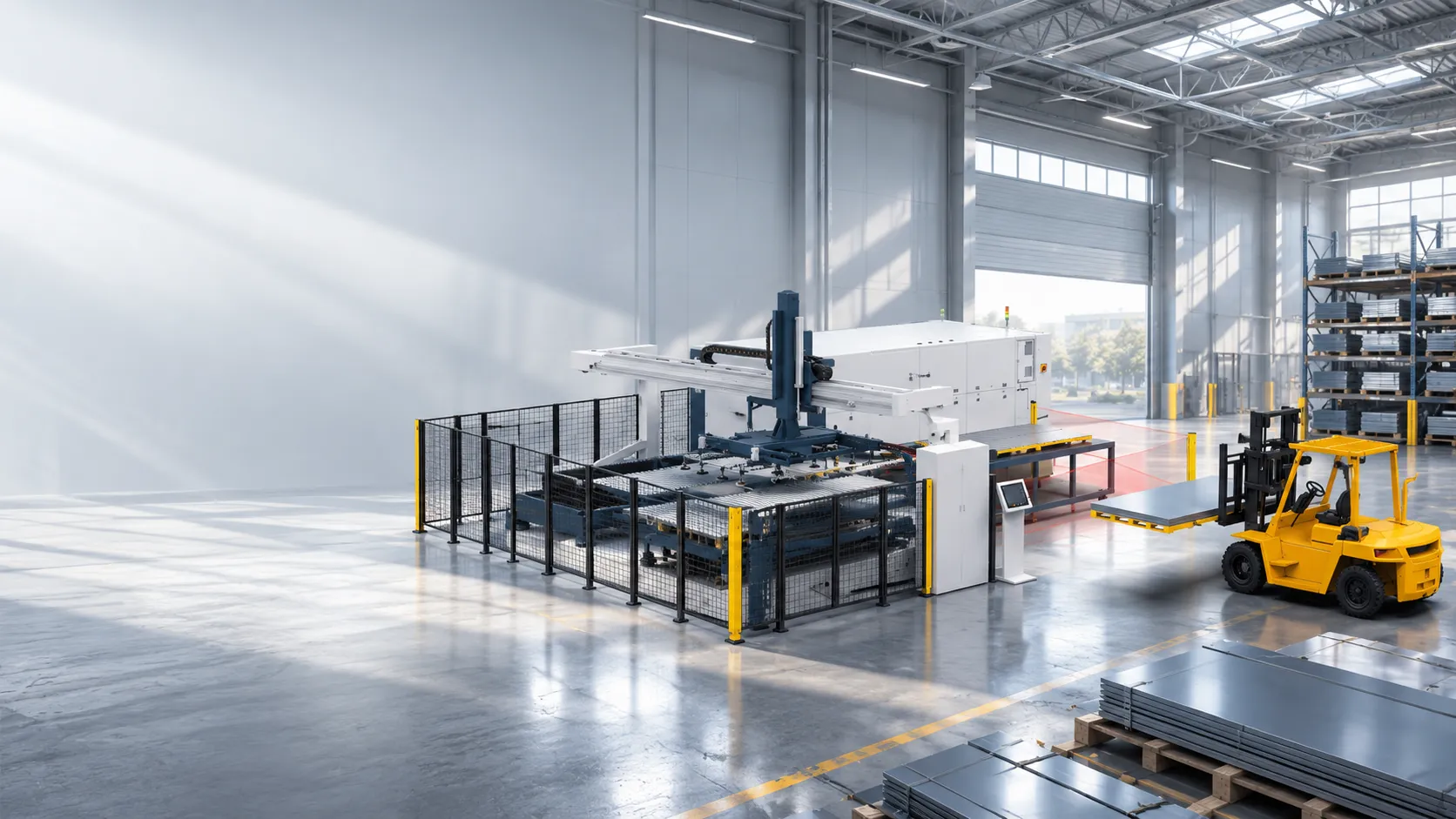

HyAuto is an automated loading and unloading solution designed for laser cutting machines. By automating material handling, it reduces machine idle time, improves equipment utilization, and supports stable, continuous production. Suitable for a variety of metal sheets, including carbon steel, stainless steel, and copper, HyAuto helps manufacturers streamline their laser cutting workflow and achieve more efficient production.

900 kg
Max. Loading Weight
3048 × 1524 mm
Max. Sheet Size
1-25 mm
Sheet Thickness
CNC
Integration
Improved Machine Utilization

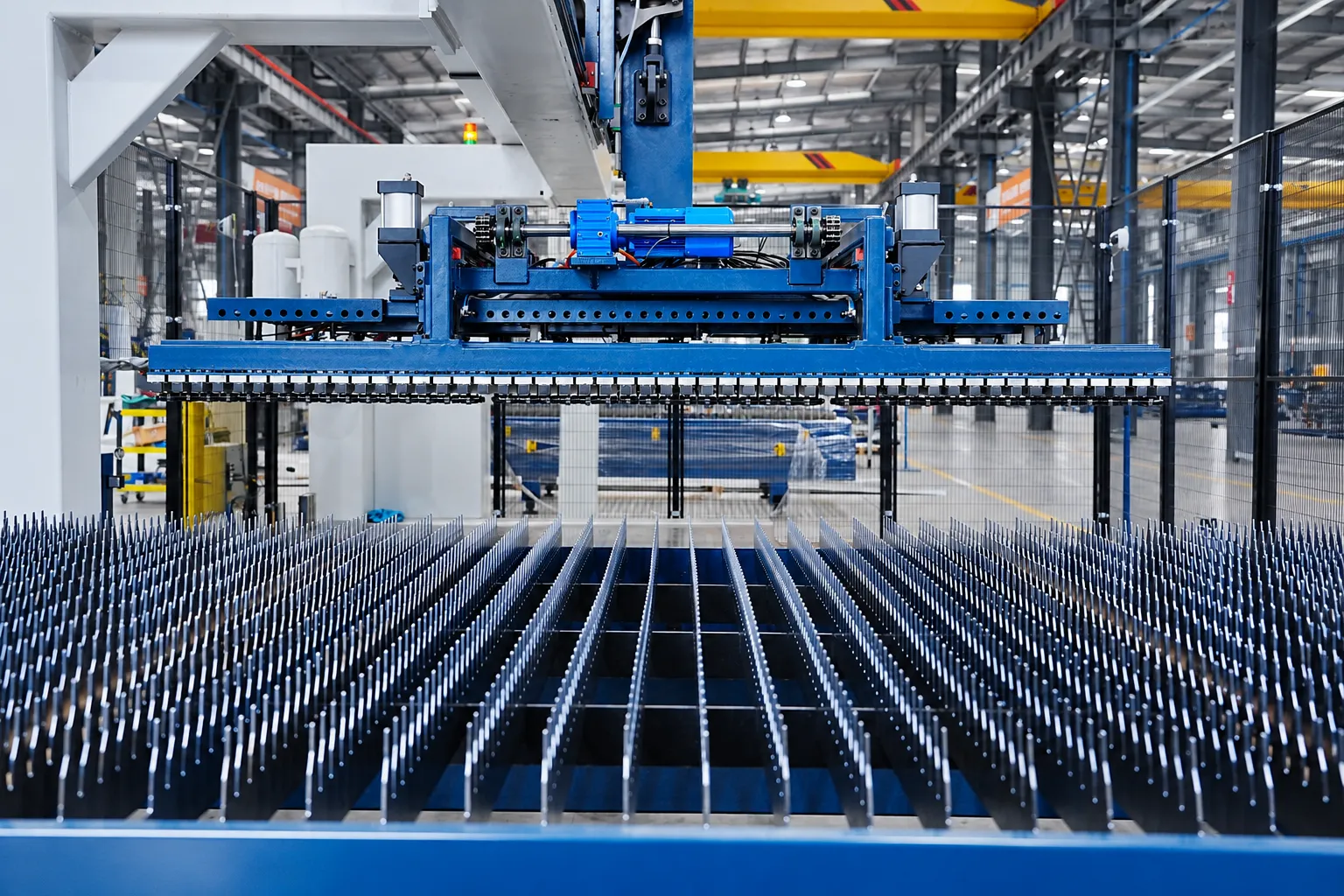

01. Improved Machine Utilization
Reduce Waiting Time. Keep Production Moving.
Automated loading and unloading minimizes material handling delays, helping laser cutting machines maintain efficient operation and support continuous production.
Reliable Sheet Handling
02. Reliable Sheet Handling
Handle Heavy Sheets with Confidence.

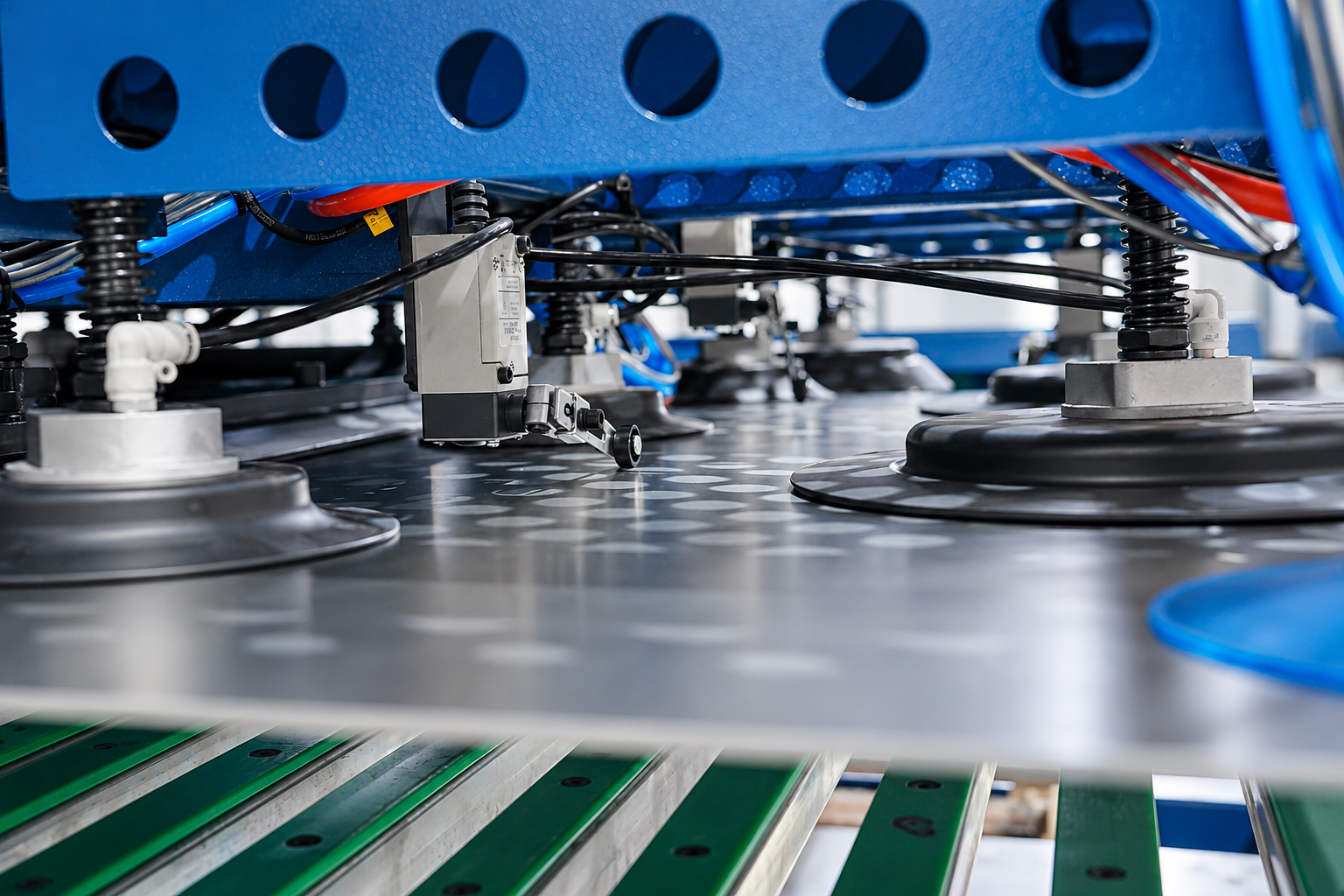

Supports metal sheets up to 900 kg, with vacuum loading and fork-type unloading to ensure stable and reliable material handling throughout the process.
Intelligent Sheet Detection
03. Intelligent Sheet Detection
Reliable Loading, Sheet After Sheet.
Double-sheet detection and sheet separation help prevent multiple sheets from being loaded together, ensuring reliable single-sheet handling and consistent automated operation.
Easy & Safe Operation
04. Easy & Safe Operation
Simplified Control. Reliable Operation.
An independent control system with CNC communication enables convenient operation and coordinated production, while integrated safety features support reliable automated operation.

Technical Specifications

Specification

Value

Sheet Loading Sizes

3048 × 1524 mm / 2500 × 1250 mm / 2000 × 1000 mm / 1000 × 1000 mm

Maximum Sheet Size

3048 × 1524 mm

Minimum Sheet Size

1000 × 1000 mm

Maximum Sheet Thickness

25 mm

Minimum Sheet Thickness

1 mm

Maximum Loading Weight

900 kg
