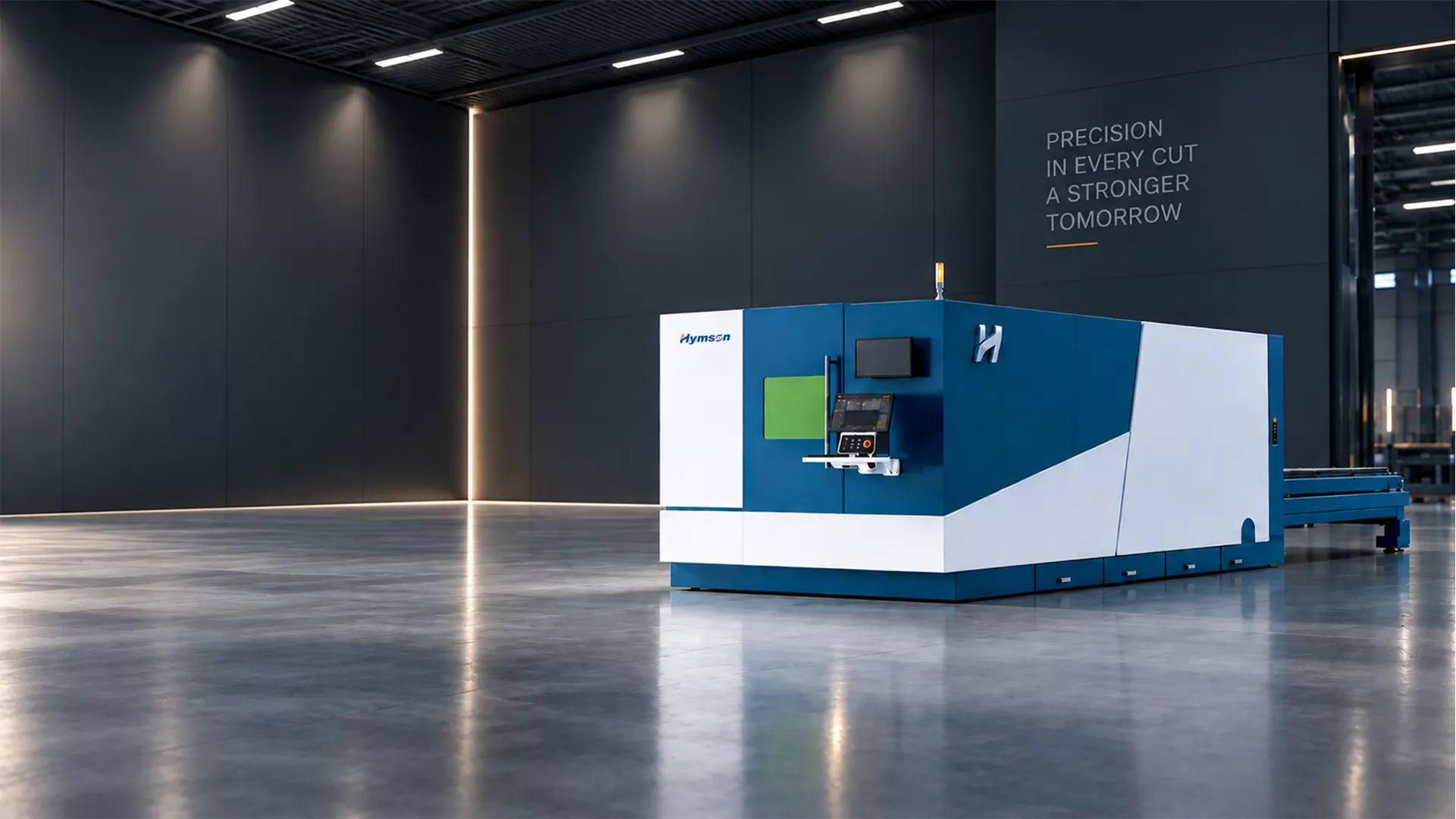

HyLaser PLUS
HyLaser PLUS
Efficient Production for Everyday Manufacturing
Easy Operation | Efficient | Practical
Home 2D Laser Cutting Machine HyLaser PLUS
Reliable Performance for Everyday Manufacturing

HyLaser PLUS is designed for manufacturers who prioritize cutting quality, production reliability and long-term return on investment.
Built around the practical needs of everyday manufacturing, it combines proven cutting technology, comprehensive safety protection and user-friendly operation to help businesses achieve fast deployment and stable production.
Whether handling daily production, batch manufacturing or frequent job changes, HyLaser PLUS delivers consistent cutting quality and dependable performance day after day.

1.5 g
Stable Acceleration
±0.03 mm/m
Positioning Accuracy
Up to 6 kW
Laser Power
3216 / 4221
Working Area

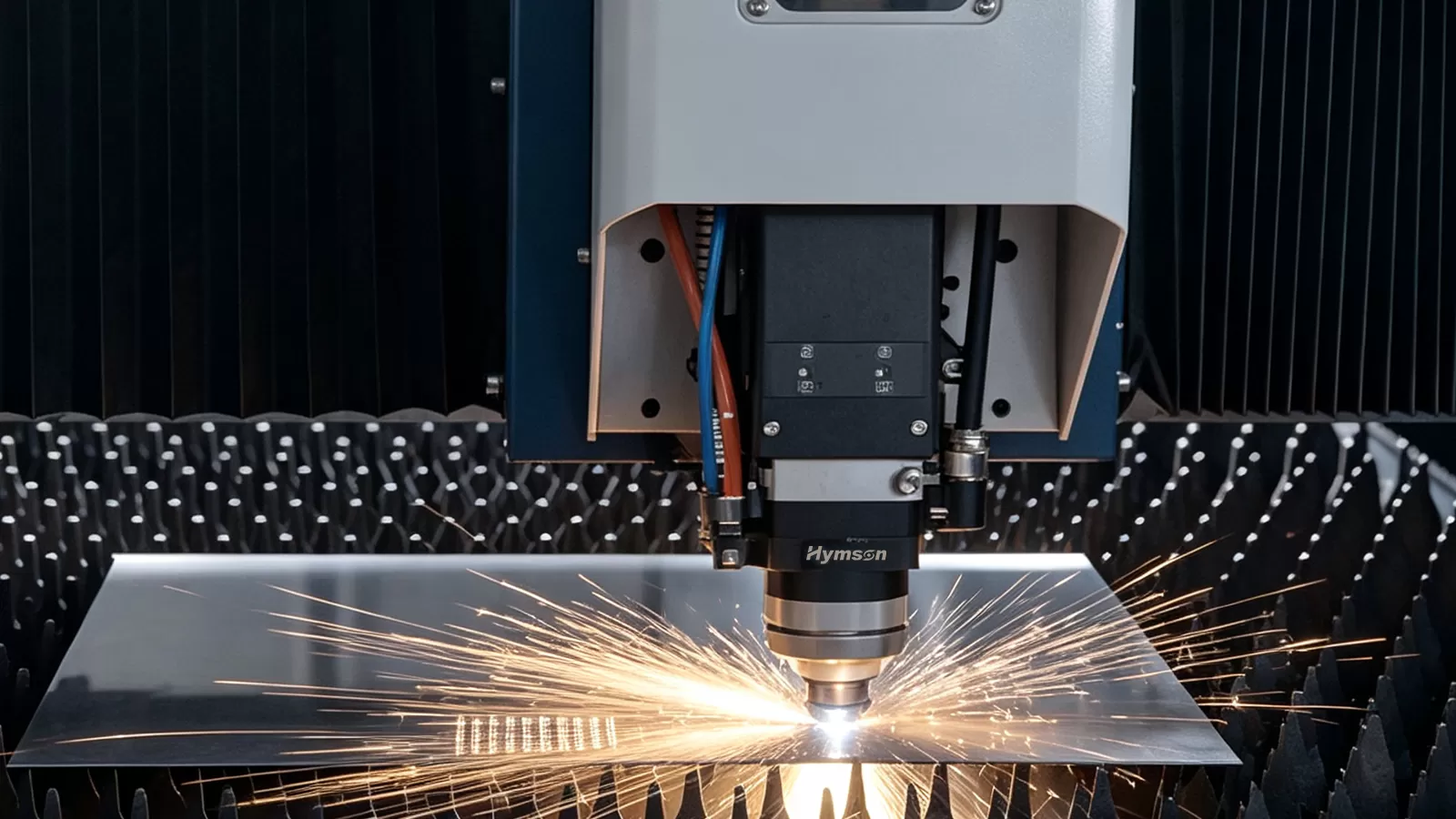

Consistent Cutting, Reliable Results
01. Consistent Cutting, Reliable Results
Proven Processes for Stable Quality
Optimized cutting processes help maintain consistent cutting quality throughout daily production.
Less Trial Cutting, Faster Production
02. Less Trial Cutting, Faster Production
Proven Process Library
Pre-configured cutting process libraries help achieve reliable cutting quality from the first cut, reducing material waste and minimizing time spent on process adjustments.
Machine Stability, Reliable Production
03. Machine Stability, Reliable Production
High-Rigidity Mortise-and-Tenon Bed Structure
The mortise-and-tenon machine bed design helps maintain accuracy and stable performance over years of operation.
Safe Operation, Less Unplanned Downtime
04. Safe Operation, Less Unplanned Downtime
Comprehensive Safety Protection
A comprehensive safety system combining collision protection and machine status monitoring helps ensure safe and reliable production.
Easy to Learn, Easy to Run
05. Easy to Learn, Easy to Run
User-Friendly Operation
A user-friendly control system, multi-language interface and integrated CAD/NEST workflow simplify programming and daily operation, helping operators get productive faster.
Cleaner Workplace, Healthier Production
06. Cleaner Workplace, Healthier Production
Optimized Dust Extraction
Intelligent zoned exhaust extraction and a negative-pressure enclosure help control processing fumes, protect critical components and create a cleaner, healthier working environment.

Use Cases

01.
General Sheet Metal
Machine parts, sheet metal structures, metal enclosures, custom sheet metal parts
02.
Electrical Cabinets
Electrical cabinets, control cabinets, distribution cabinets, equipment enclosures
03.
Kitchenware & Hardware
Kitchenware, cabinets, bathroom hardware, stainless steel products
04.
Elevators
Elevator cabins, doors, panels, structural components
05.
Electrical Manufacturing
Electrical enclosures, mounting plates, control panels, structural components
06.
Customized Metal Fabrication
Custom parts, complex-shaped sheet metal parts, small-batch components, non-standard structures

Cutting capacity

Power 6 kW
Material Carbon Steel Stainless Steel Brass
Maximum Cutting Thickness 25 mm 12 mm 10 mm

Workpiece

View More

Technical Specifications

Model

HyLaser 3216 PLUS

HyLaser 4221 PLUS

Max. Working Area

3200*1600 mm

4200mm*2100 mm

X&Y Axis Max. Linkage Speed

140 m/min

Max. X-Y Axis Acceleration

1.5 g

X-Y Axis Positioning Accuracy

±0.03 mm/m

Z Axis Travel

300 mm

Max. Z Axis Speed

72 m/min

Machine Overall Dimensions

11000 * 2800 * 2350 mm

13200 * 3400 * 2350mm
