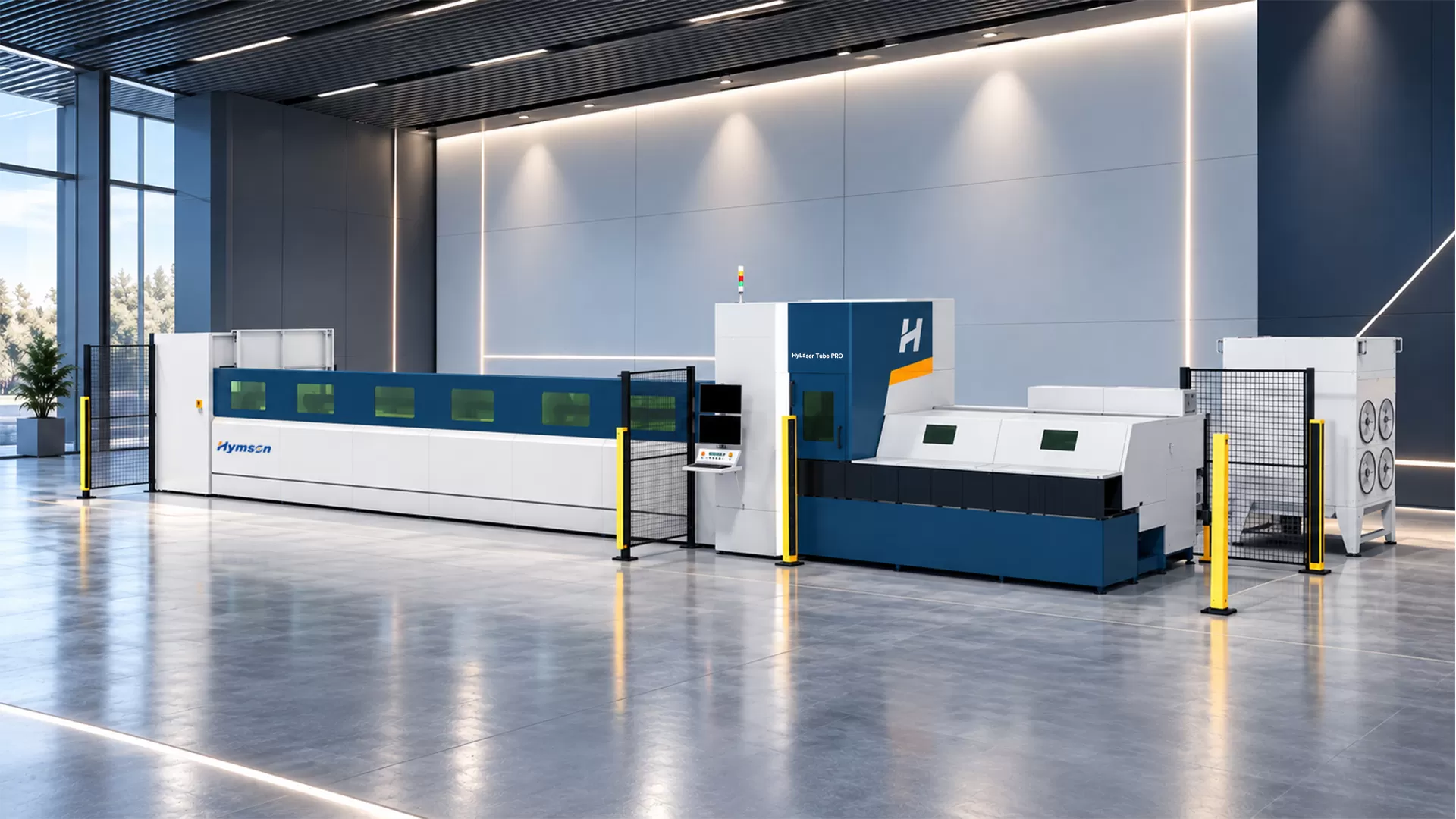

HyLaser Tube
Home Tube Laser Cutting Machine HyLaser Tube

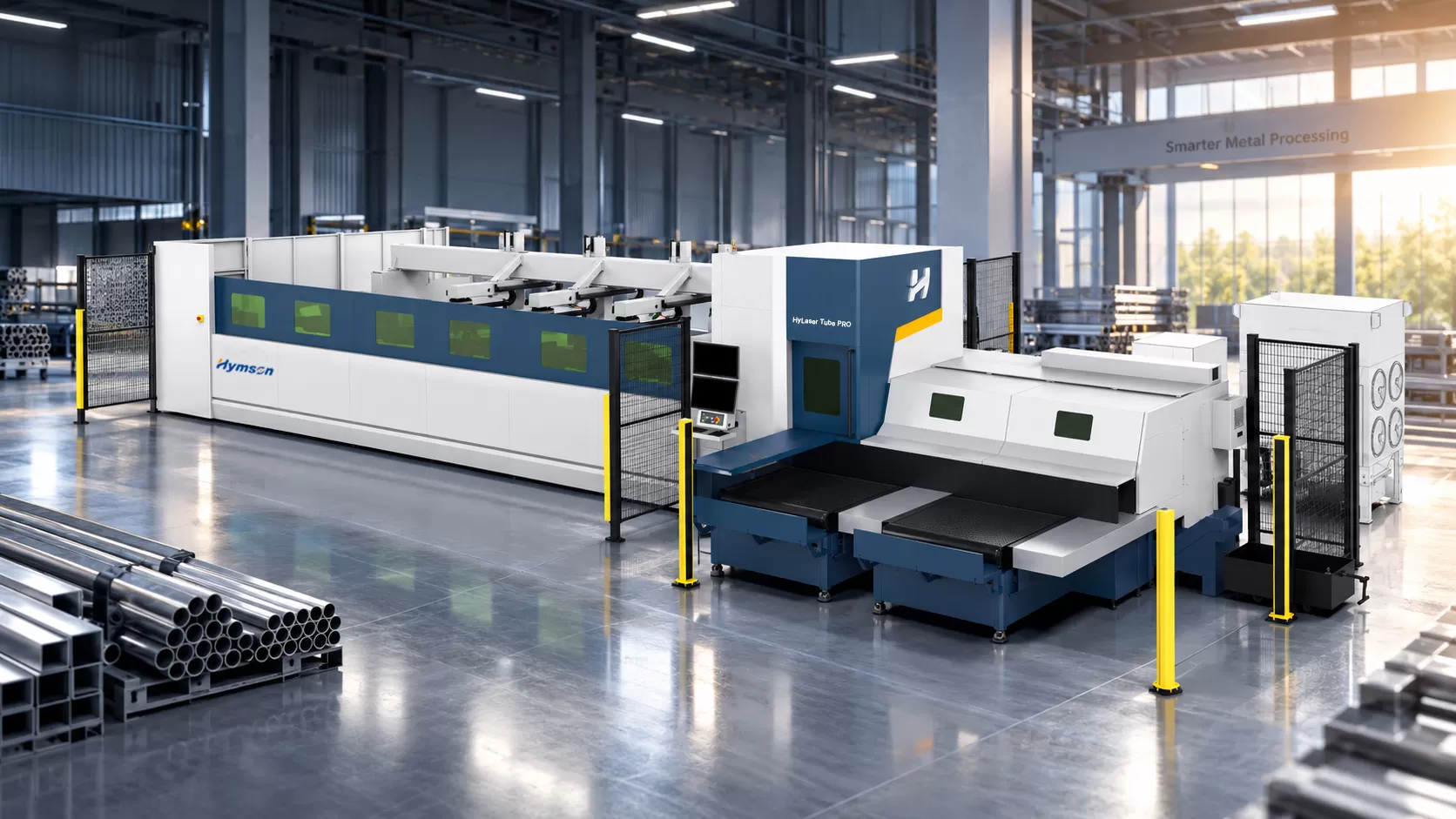

HyLaser Tube
Smart Tube Laser Cutting for Flexible Production
HyLaser Tube PRO is designed for flexible tube processing across a wide range of materials, profiles and production requirements. Combining versatile processing capabilities with stable cutting quality, intelligent functions and flexible automation options, it helps manufacturers simplify tube processing, improve productivity and achieve better material utilization.
Dual-Chuck
Configuration
3-6 kW
Laser Power
±0.03 mm/m
Positioning Accuracy
Up to 6500 mm
Tube Processing Length
150 kg
Max. tube weight
Process More Tube Types

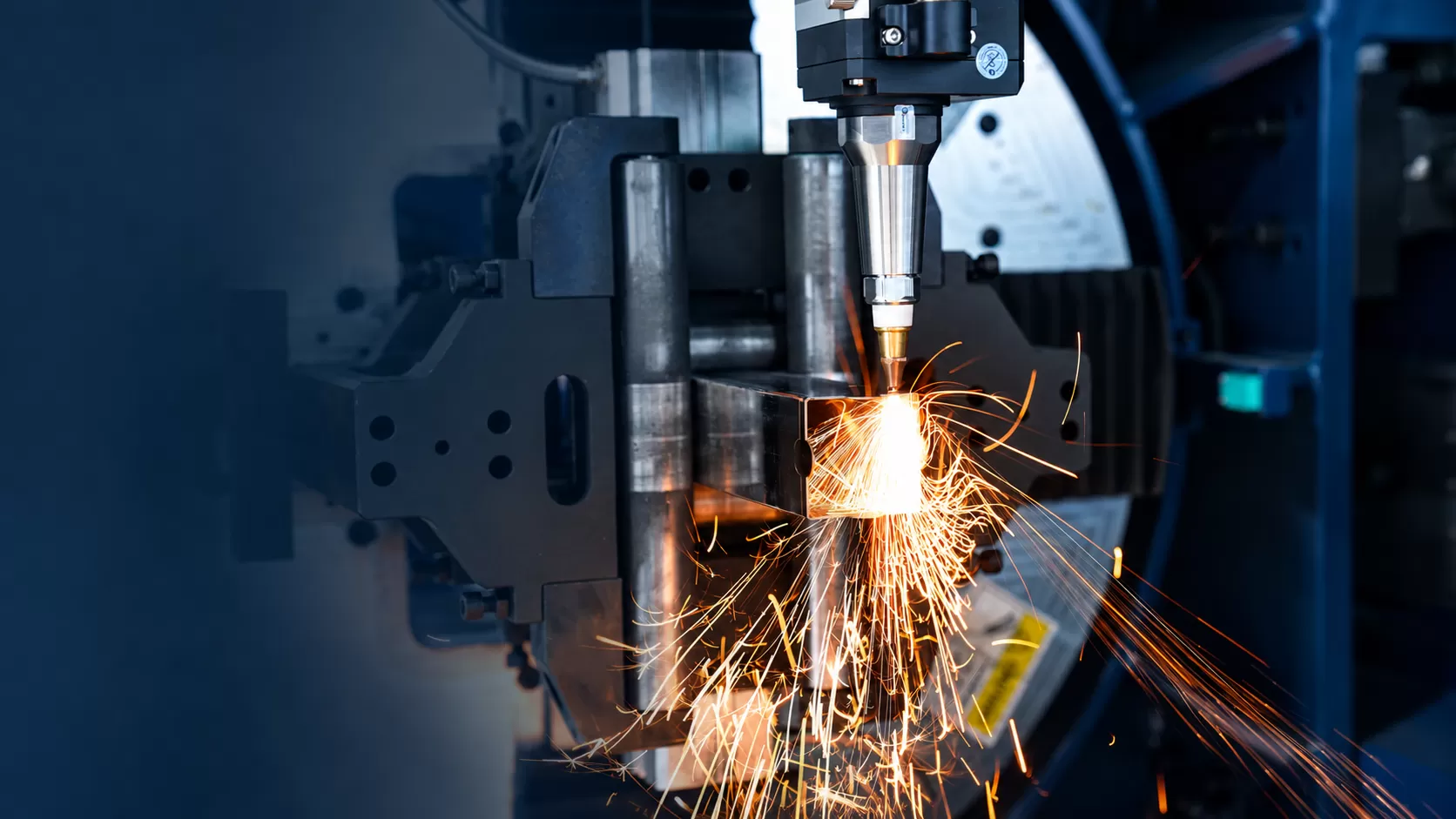

01. Process More Tube Types
One Mchine for More Processing Possibilities
Supports round, square, rectangular and oval tubes, as well as C-channels, H-sections and angle bars, for flexible processing of diverse tube profiles.
Get More from Every Tube
02. Get More from Every Tube
Reduce Remnants. Improve Material Utilization.
With minimum remnants down to 80 mm and intelligent nesting strategies, HyLaser Tube PRO helps reduce unnecessary material waste and make better use of both new tubes and remaining materials.
Get More from Every Tube
03. Get More from Every Tube
Reduce Remnants. Improve Material Utilization
With minimum remnants down to 80 mm and intelligent nesting strategies, HyLaser Tube PRO helps reduce unnecessary material waste and make better use of both new tubes and remaining materials.
Simplify Tube Processing
04. Simplify Tube Processing
Smarter Functions for a More Efficient Workflow
Automatic positioning, tube alignment, one-click cutting and flying cutting reduce manual steps and make everyday tube processing easier and more efficient.
Automation That Fits Your Production
05. Automation That Fits Your Production
Flexible Loading and Unloading Options
Loading:
Choose between Step Loading and Bundle Loading, with automated loading cycles as fast as 10 seconds.*
Unloading:
Two adjustable conveyors provide flexible automated unloading.

Use Cases

01.
Metal Furniture & Office Furniture
Tables, chairs, shelving, storage cabinets, and other tubular components for metal furniture.
02.
Bicycles & E-Bikes
Frames, handlebars, supports, and other tubular structural components.
03.
Fitness Equipment & Sporting Goods
Fitness equipment frames, sporting goods, and other tubular structural components.
04.

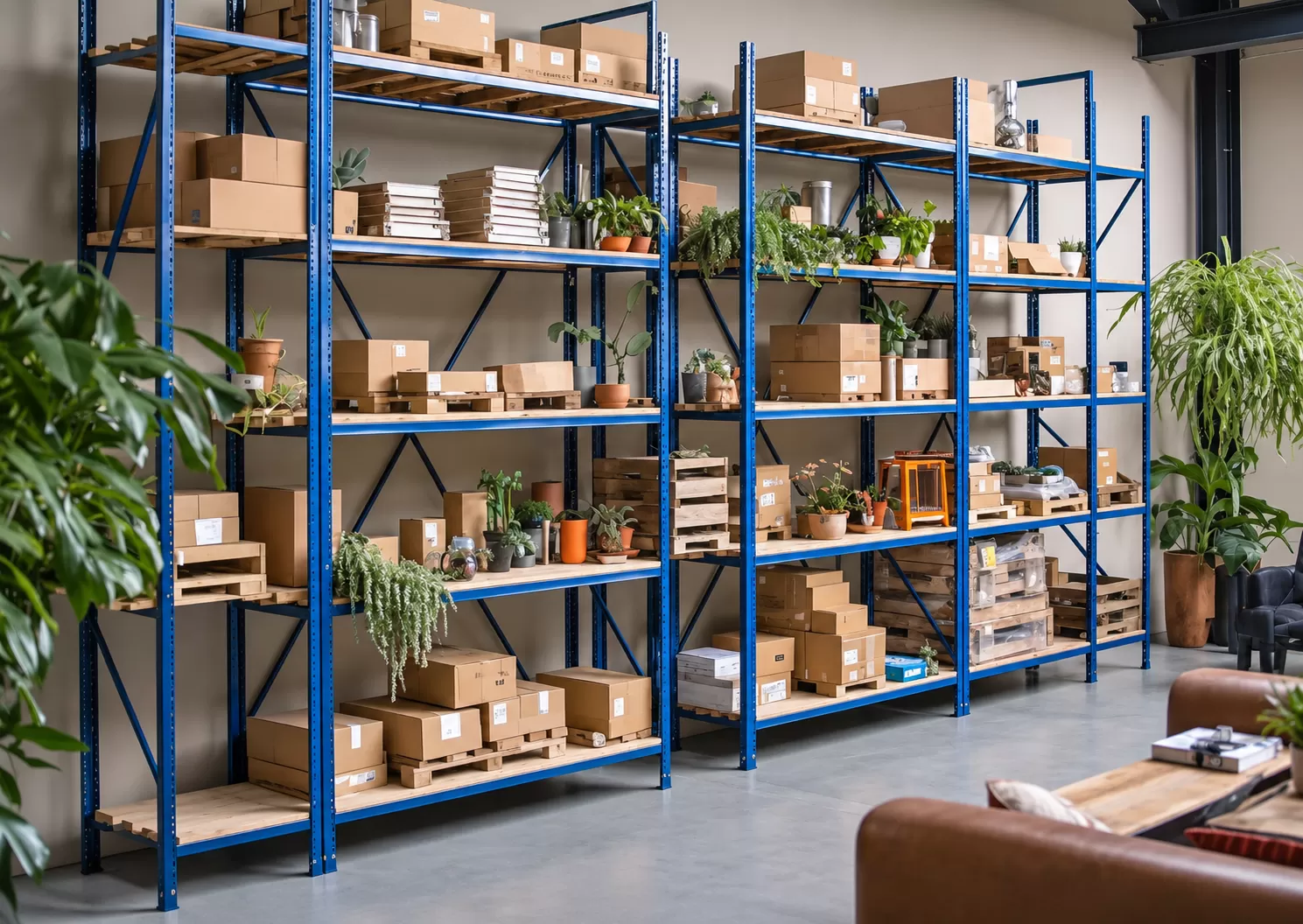

Hardware Products & Display Equipment
Shelving, display stands, brackets, and other tubular hardware components.
05.

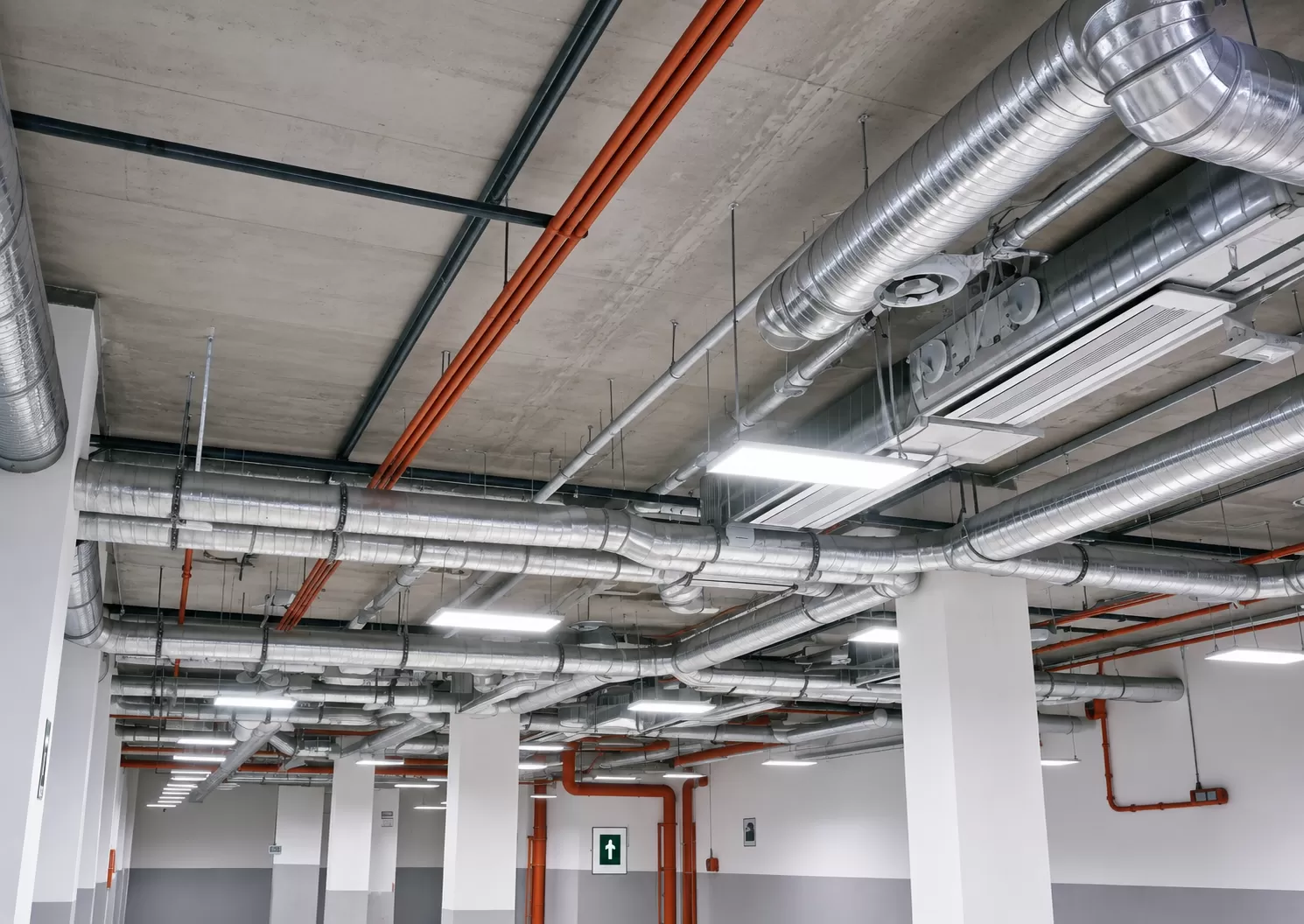

Ventilation & Environmental Equipment
Ventilation systems, environmental equipment, and related tubular components.

Cutting capacity

Model HyLaser Tube PRO
Round Tube Φ20–Φ200 mm
Square Tube □20–□200 mm
Rectangular Tube Side Length 20–200 mm

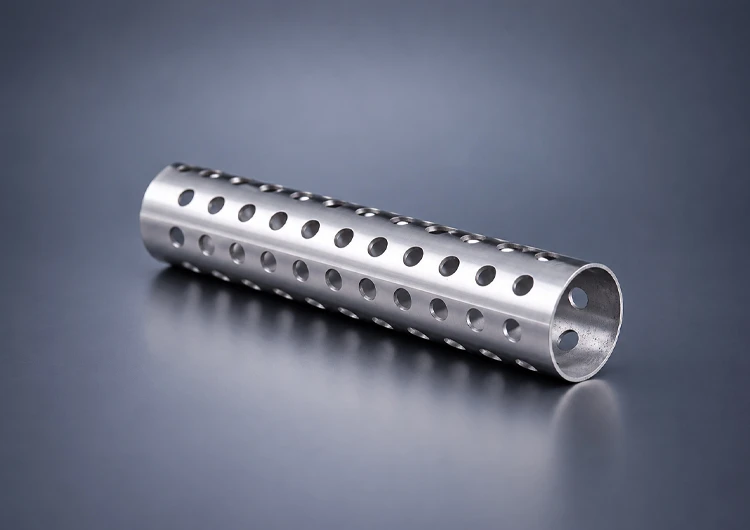

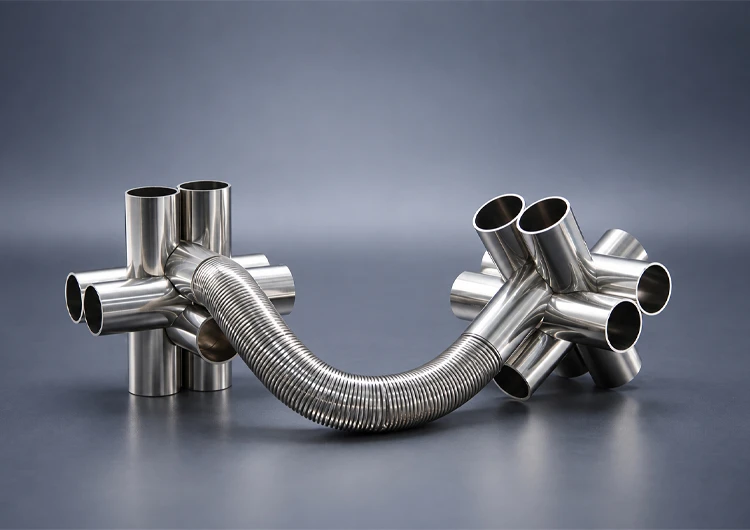

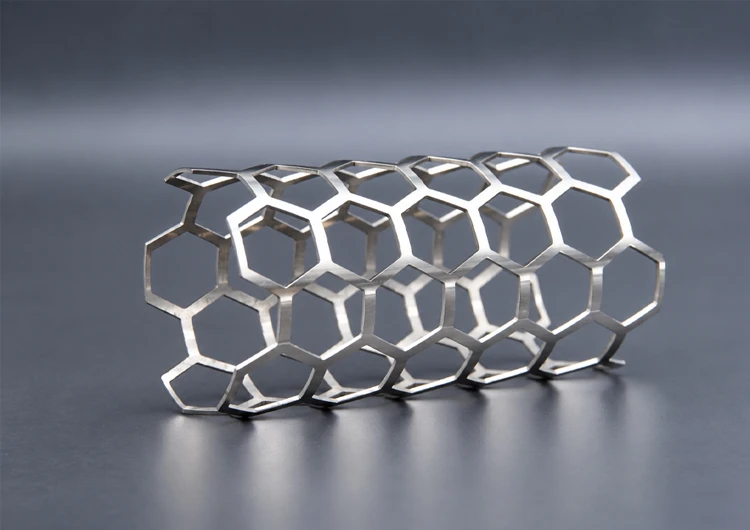

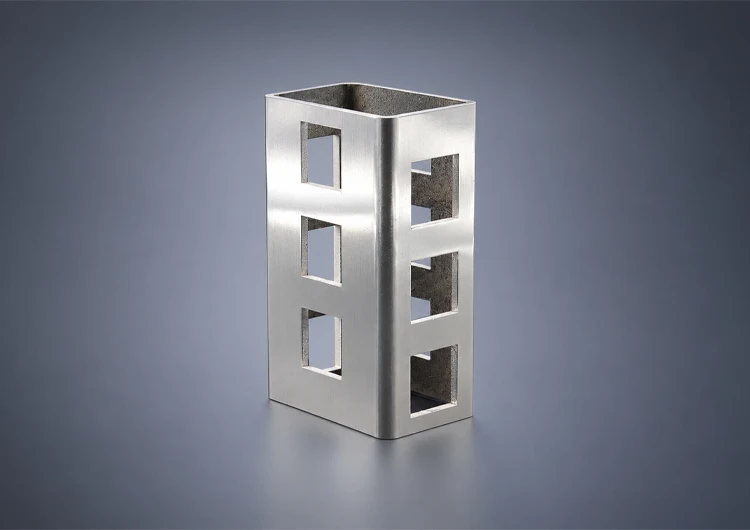

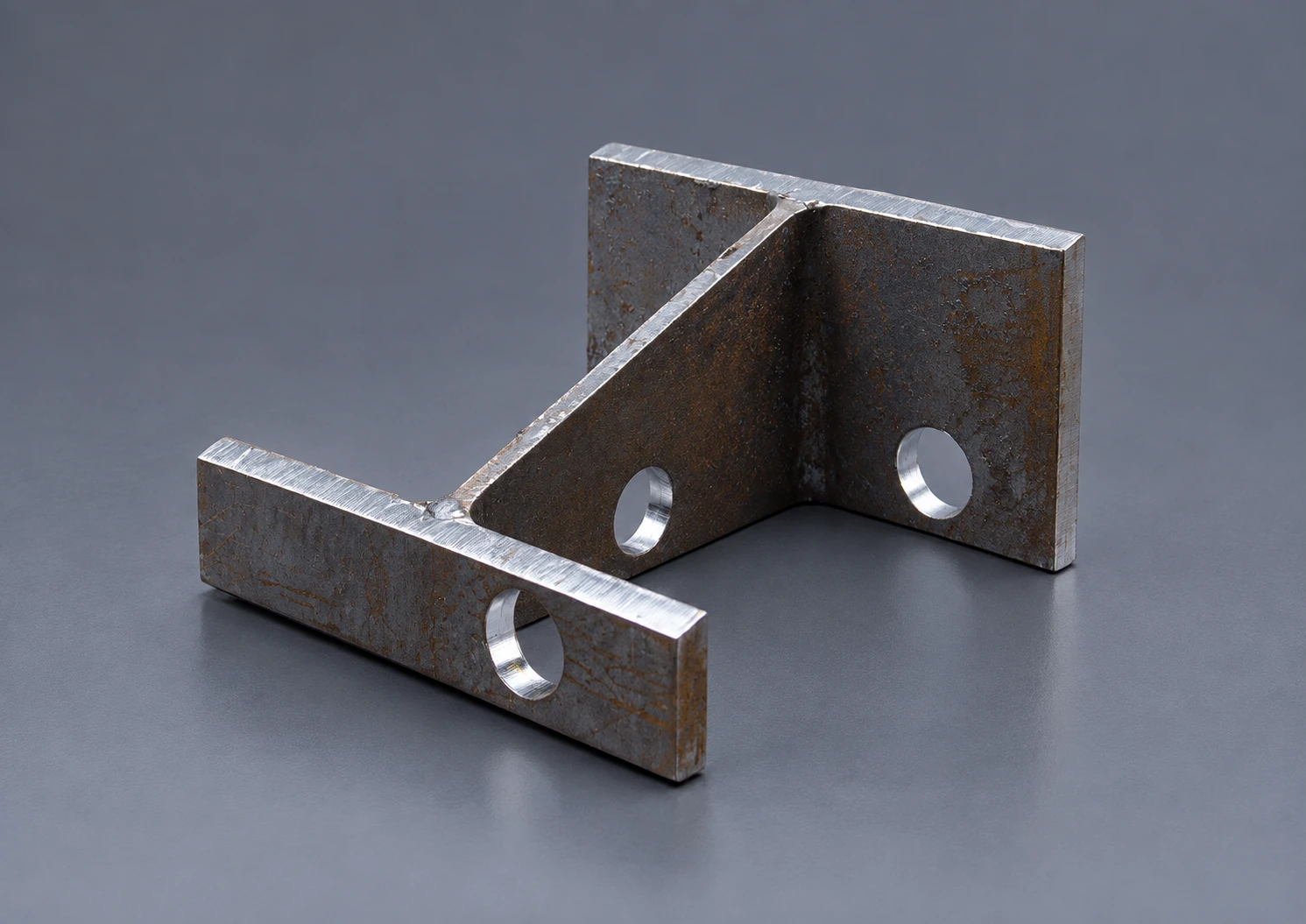

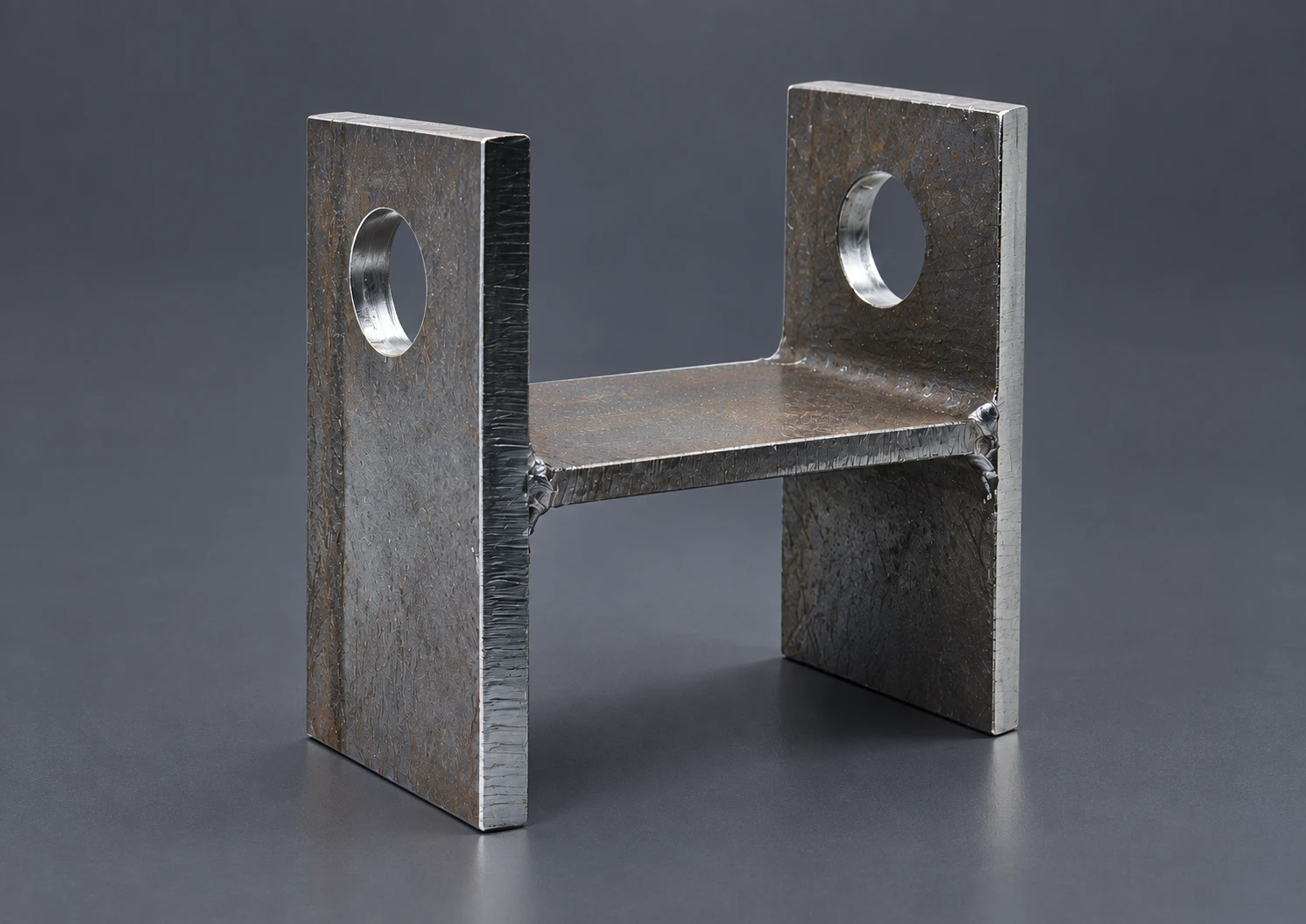

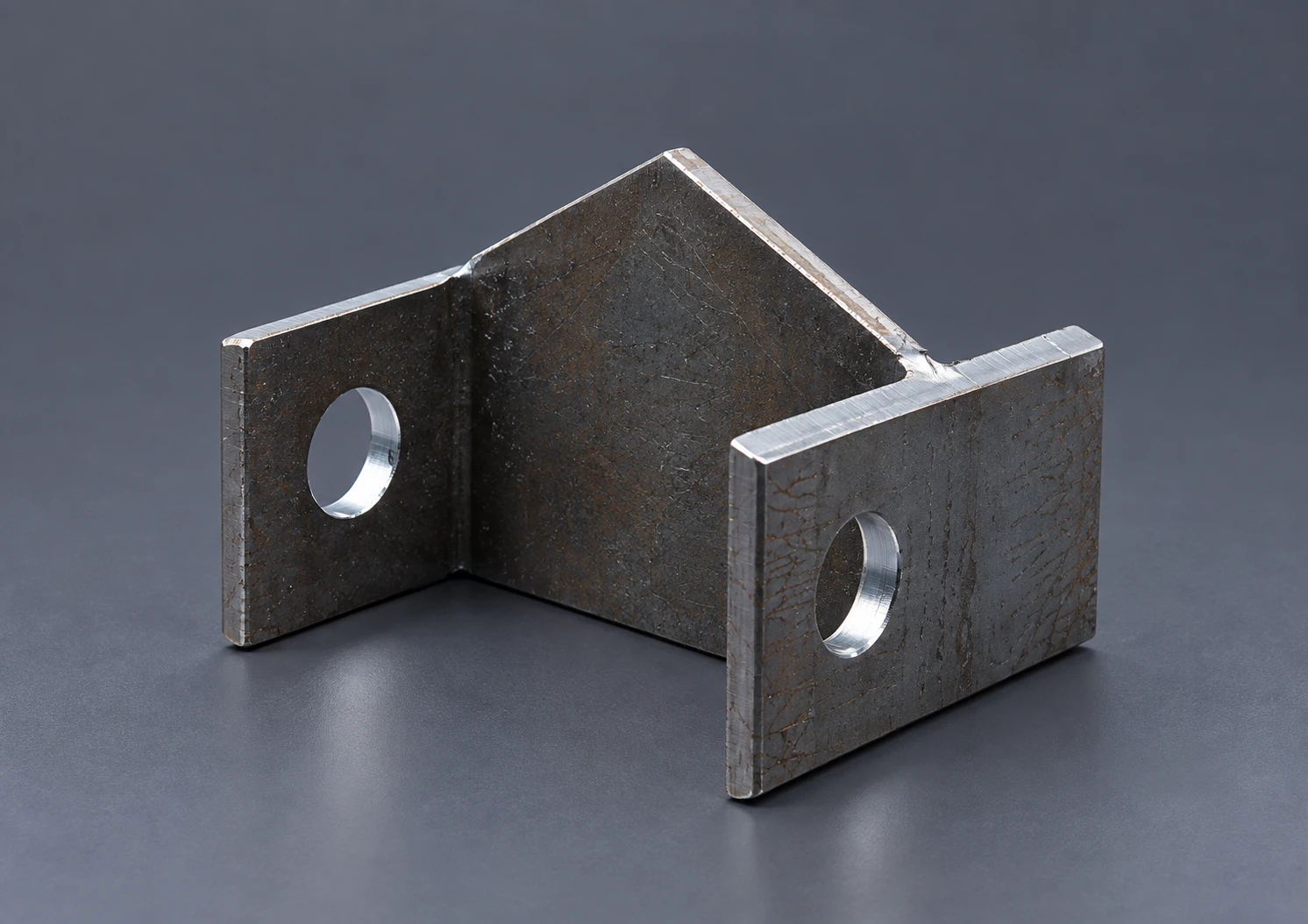

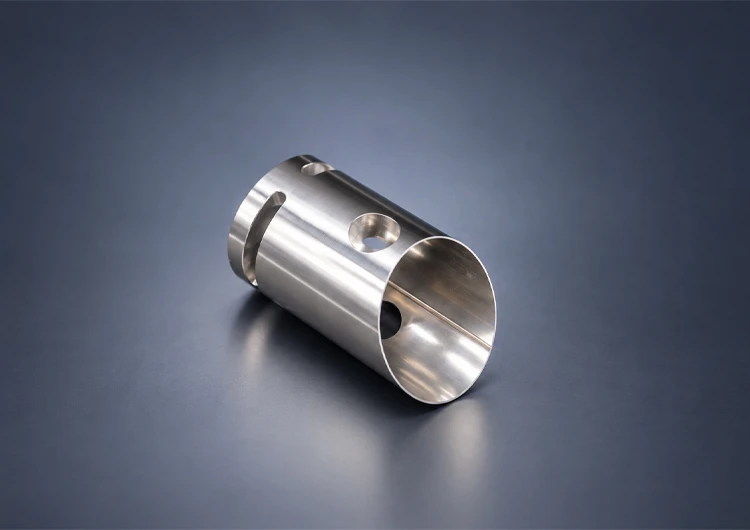

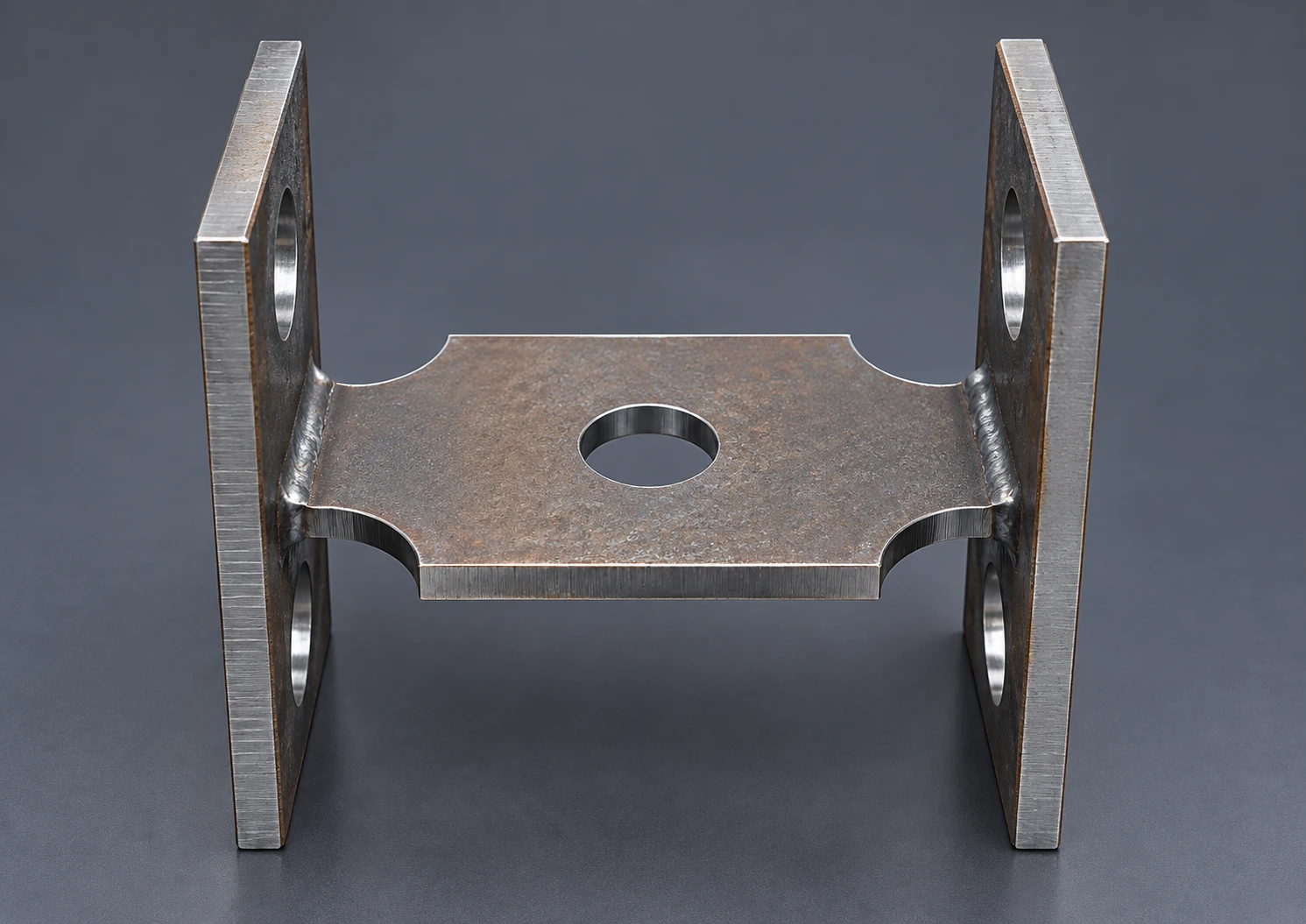

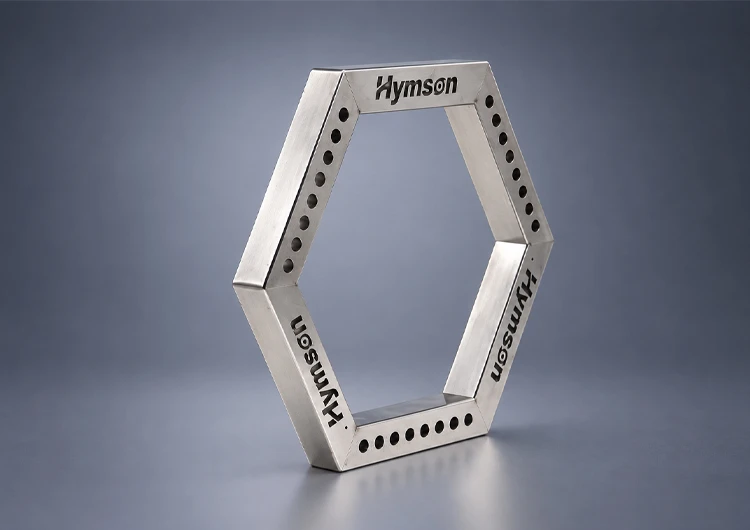

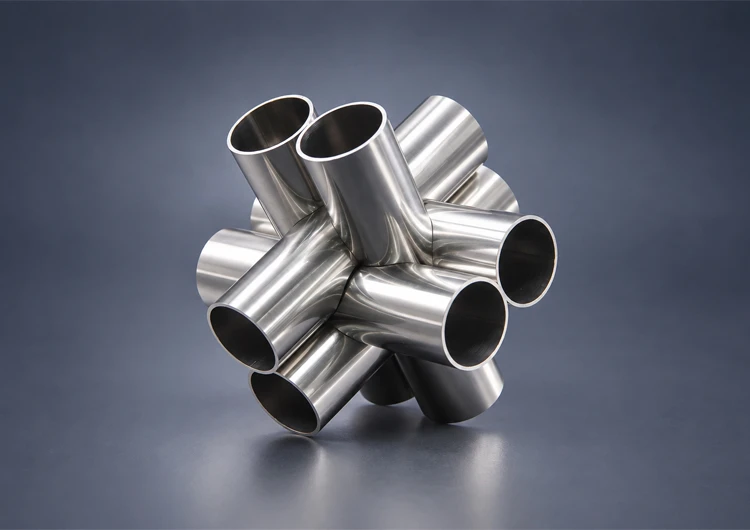

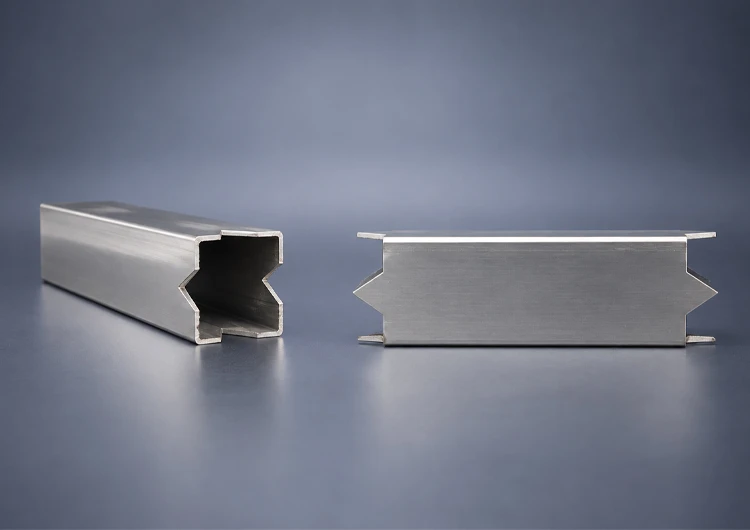

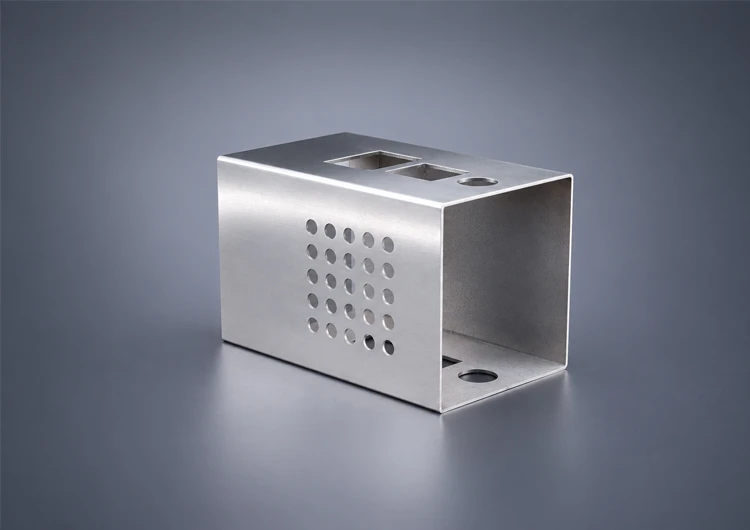

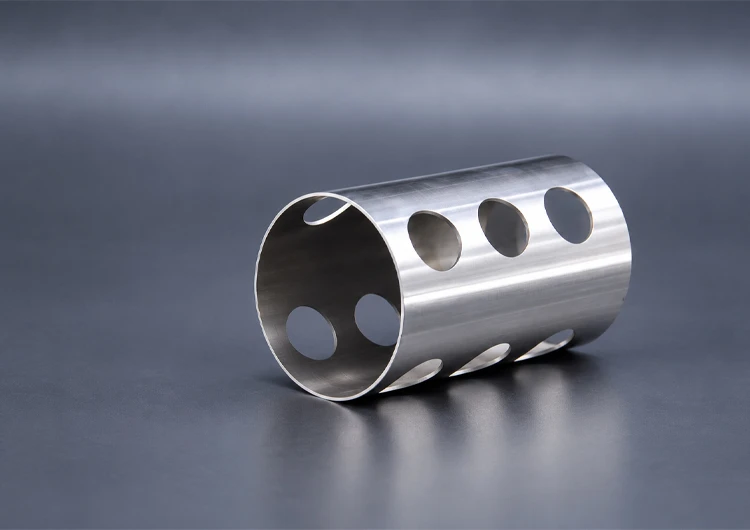

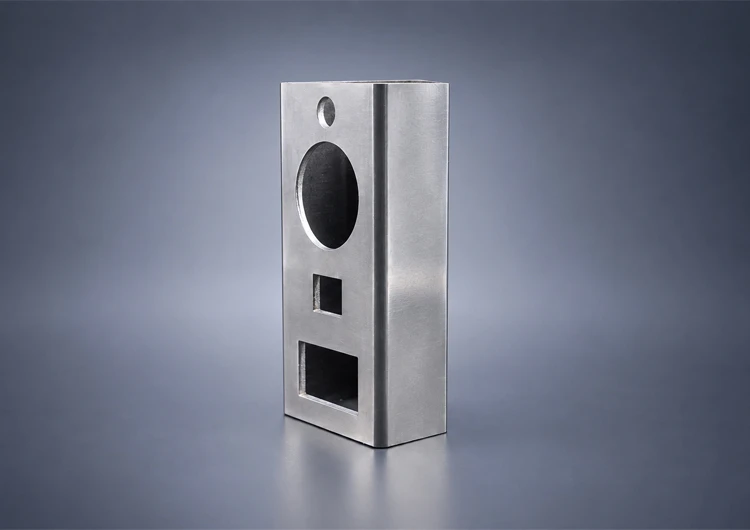

Workpiece

View More

Technical Specifications

Model

HyLaser Tube PRO

Laser Power

3kW/6kW

Tube Size Range

Round Tube

φ20-200

Square Tube

□20-200

Max.TubeLength

6500 mm

Unloading

3000mm

Max. tube weight

150 kg

Max. chuck rotating speed

120 rpm

B1-axis and B2-axis

Continuous Rotation

120 rpm

Angular Acceleration

120 rad/s²

X&Y axis

Max.Speed

120 m/min

Max. Acceleration

1.5g

Positioning Accuracy

±0.03 mm/m

Z-axis

Positioning Speed

60 m/min

Acceleration

2.0 g

Positioning Accuracy

±0.03 mm/m

Remnant Length

80 mm

Minimum Wall Thickness

2.5% of tube diameter ≥ 1.2 mm
