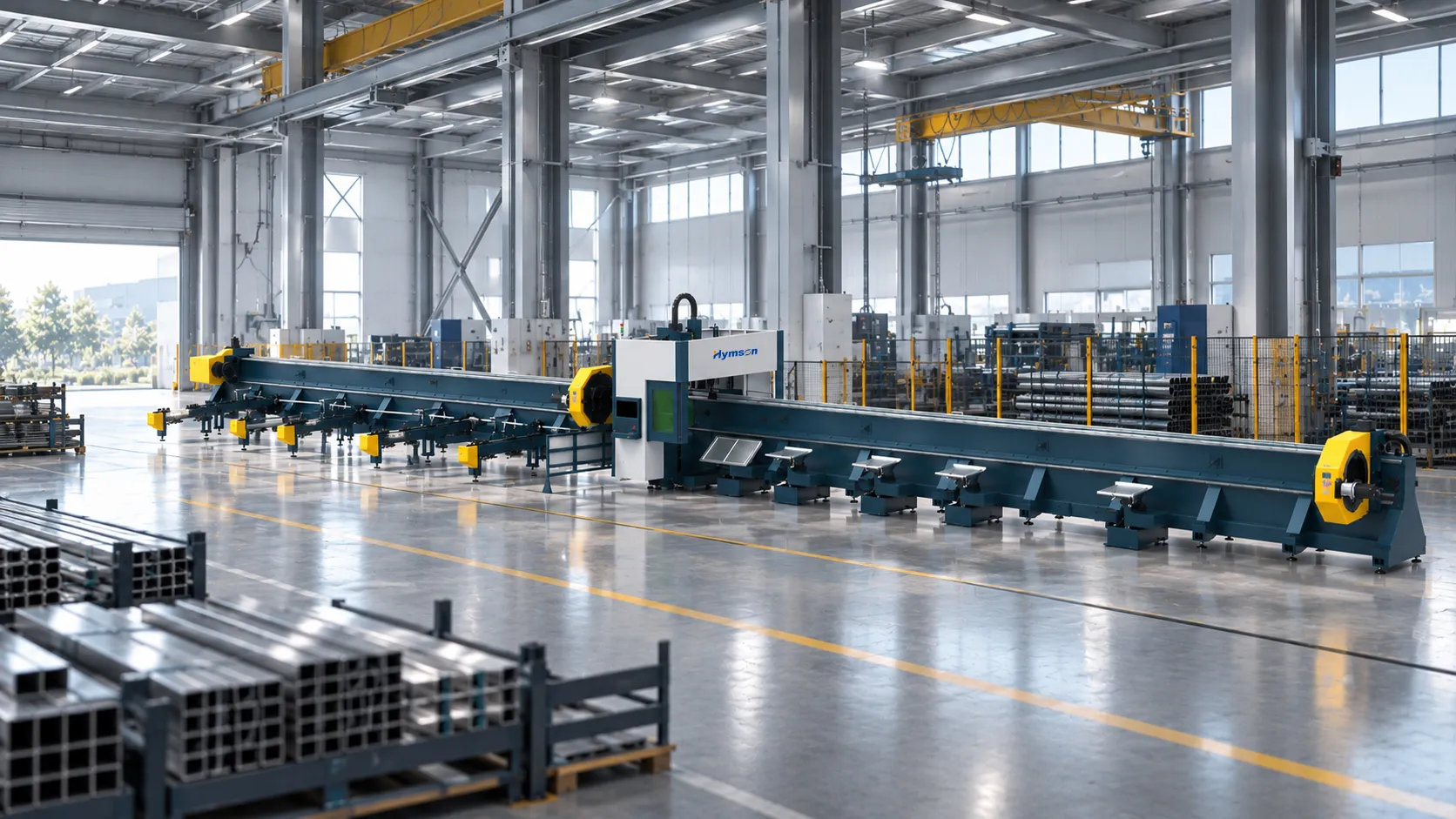

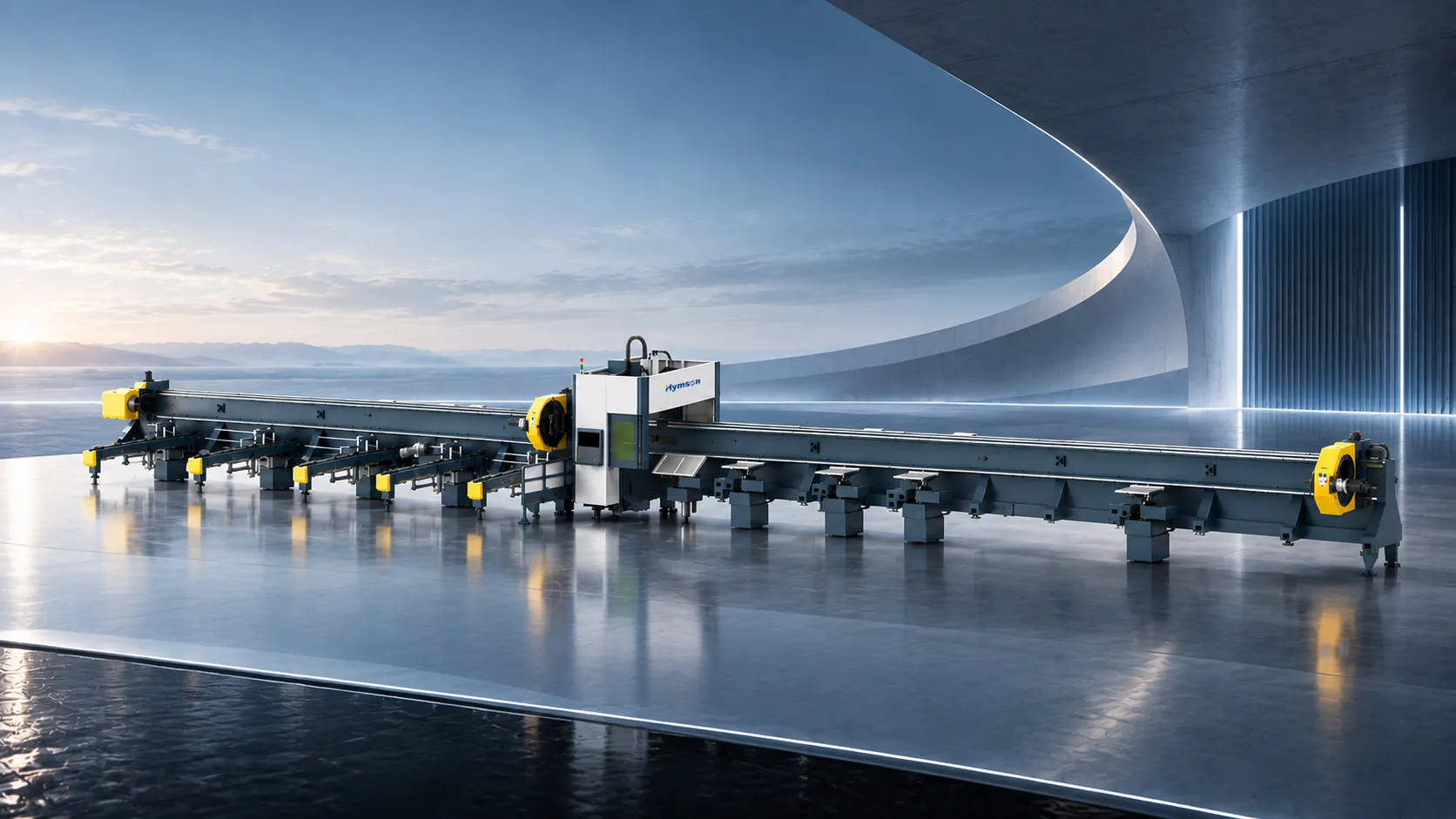

TP Laser Tube Cutting Machine
One Machine. More Possibilities.

The TP Tube Cutting Machine is designed for the complex processing of large tubes, thick-wall tubes and heavy-duty profiles, making it ideal for low- to medium-volume, multi-specification and custom-fabricated orders.With flexible multi-specification processing, efficient material utilization and reliable process control, the TP Tube Cutting Machine enables manufacturers to tackle complex orders with greater confidence while improving production flexibility and processing stability.

Chucks

6 - 20 kW

Laser Power

±0.05 mm/m

Positioning Accuracy

12000 mm

Max. Tube Length

2000 kg

Max. Tube Load

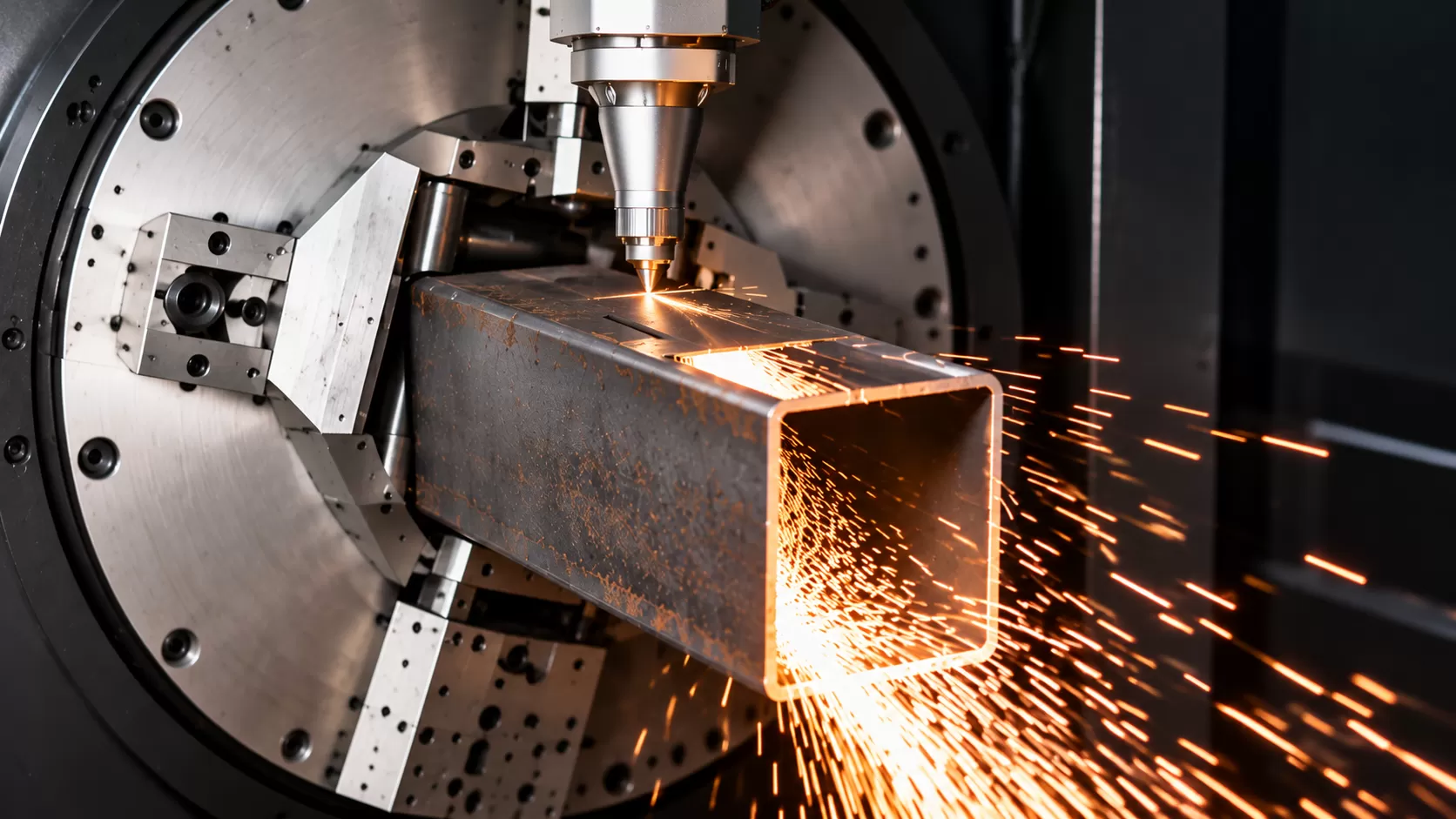

01. Versatile Processing

Multiple Tube & Profile Types. One Machine for More Processing Needs.

Supports the processing of round tubes, square tubes, rectangular tubes, channels, angles and symmetrical custom profiles. The full-stroke chuck accommodates different sizes, reducing changeover operations and meeting the needs of low-volume, multi-specification orders.

02. Consistent Accuracy

Multiple clamping and precision inspection ensure more stable processing of heavy-duty tubes.

Precision chucks and synchronized three-chuck clamping, combined with multi-axis coaxial alignment inspection, minimize tube movement while ensuring consistent processing accuracy.

03. Safe Processing

Multiple Checks. Safer Processing.

Cutting process monitoring, clamping detection and error-proofing checks help identify abnormal conditions, reducing the risk of material swing, collisions and jamming.

04. Material Efficiency

Make Better Use of Every Tube.

The ultra-short remnant design reduces material waste after processing, helping improve tube utilization and lower material consumption.

05. Easy Handling

From tube loading to part unloading, the entire process runs more smoothly.

Semi-automated loading handles tubes and profiles up to 1,500 kg per tube, while Super Micro Joint technology makes parts easier to separate for smoother unloading.

Use Cases

01.

Structural Steel & Construction

Structural frames, support structures, columns and large structural components

02.

Heavy Machinery

Construction machinery structures, equipment frames, support beams and heavy-duty components

03.

Specialized Equipment

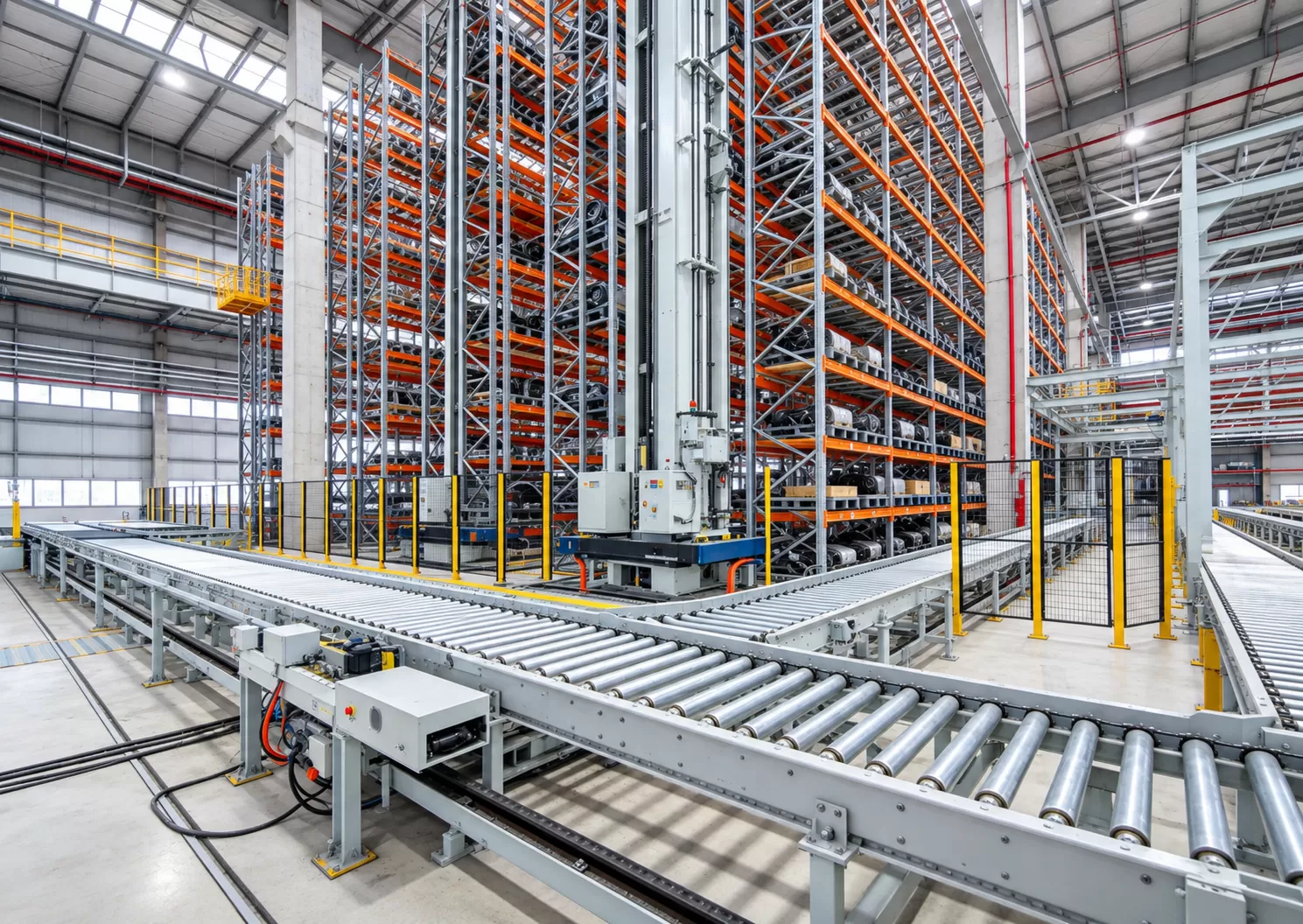

Parking systems, elevator frames, conveyor systems and large equipment structures.

04.

Infrastructure & Energy

Structural components for bridges and infrastructure, energy equipment frames and support structures.

Cutting capacity

Model	12036	12052
Round Tube	Φ40-Φ360 mm	Φ50-Φ520 mm
Square Tube	□40 - □360 mm	□50 - □520 mm
Rectangular Tube	Side Length 40–360 mm	Side Length 50–520 mm
Channel Steel	≤32#	14#–40#
Angle Steel	≤25#	5#–25#

Workpiece

Technical Specifications

Model	TP 12036	TP 12052
Max. Tube Weight	1200 kg	2000 kg
Max. Processable Tube Length	12000 mm	12000 mm
Max. Chuck Rotation Speed	60 r/min	40 r/min
Max. X-Y Axis Traversing Speed	60 m/min	60 m/min
Max. Stable X-Y Axis Acceleration	0.8 g	0.5 g
X-Y Axis Positioning Accuracy	±0.05 mm/m	±0.05 mm/m
Z-Axis Travel	575 mm	575 mm
Max. Z-Axis Speed	60 m/min	60 m/min
Requirements for tubes	Tube Diameter ≥ Φ50 mm, Wall Thickness ≥ 2.5% of Tube Diameter	Tube Diameter ≥ Φ50 mm, Wall Thickness ≥ 2.5% of Tube Diameter
Machine Overall Dimensions (Physical Boundary)	12000mm blanking: 29000 * 5000 * 3000mm	12000mm blanking: 29000 * 5000 * 3000mm
